304 US Standard In-line Cord Switch 2A 120V UL Listed Single Pole On/Off Switch for Lamp
Product Description

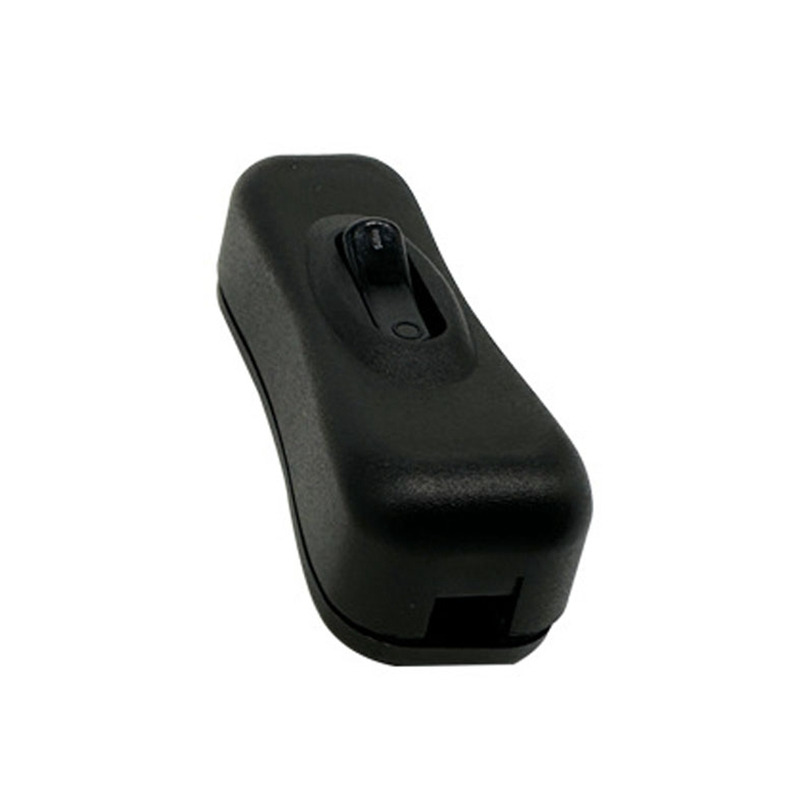

The 304 is a compact, reliable in-line cord switch designed for easy installation on power cords. It features a flame-retardant PC/PP housing and high-conductivity nickel-plated copper terminals, ensuring safe and stable performance for small household appliances, lamps, and electronic devices. Available in white, black, and transparent colors, it meets EU, US, and Japanese safety standards, making it ideal for global markets.
Key Features
✅ Multi-Certification: CE (EU), UL (US), PSE/JET (JP), CQC (China), KEMA (Korea) certified for global market access

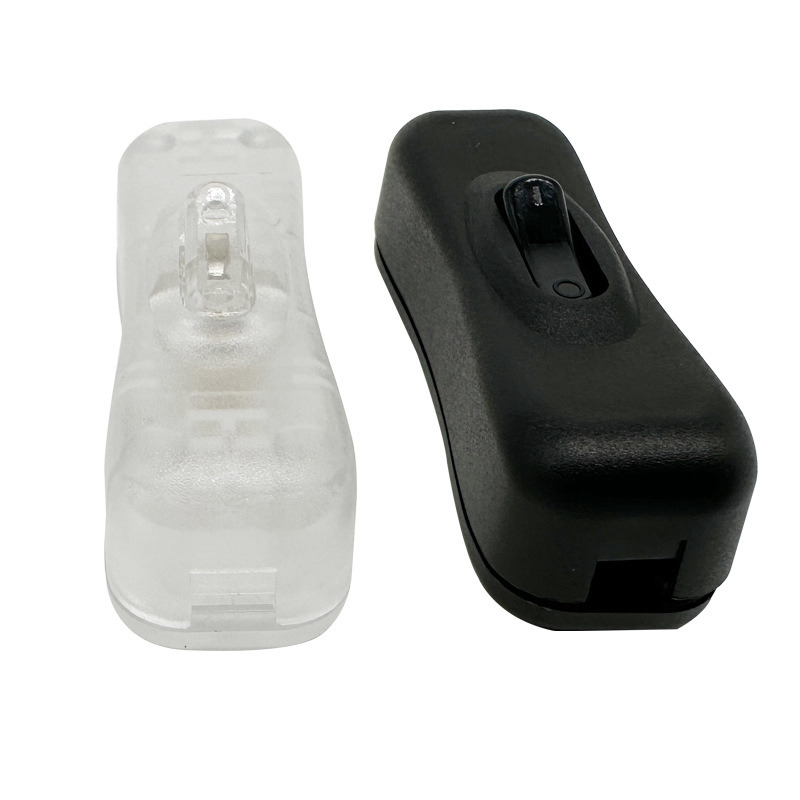

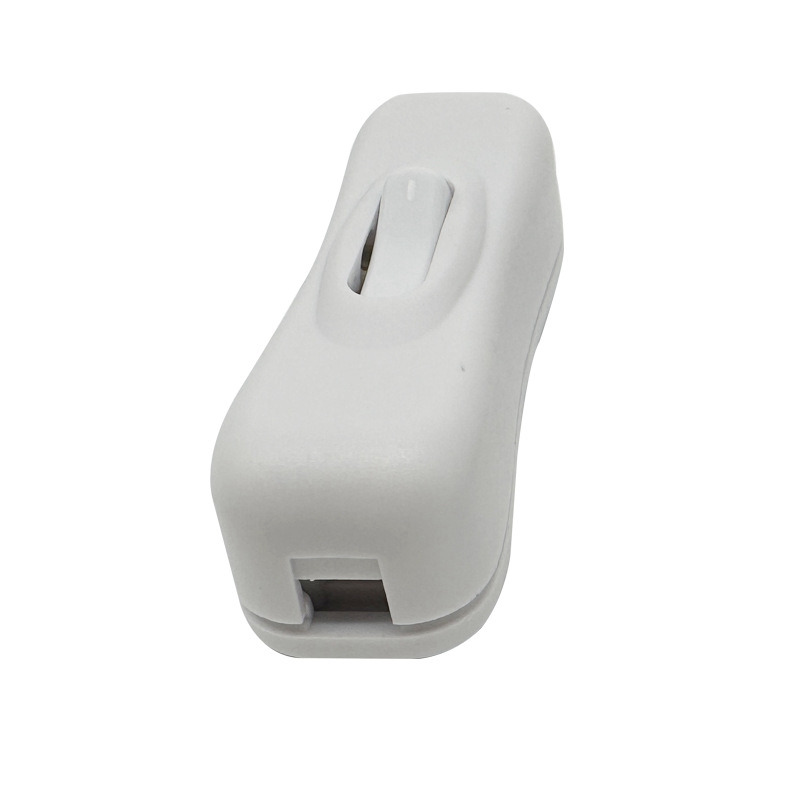

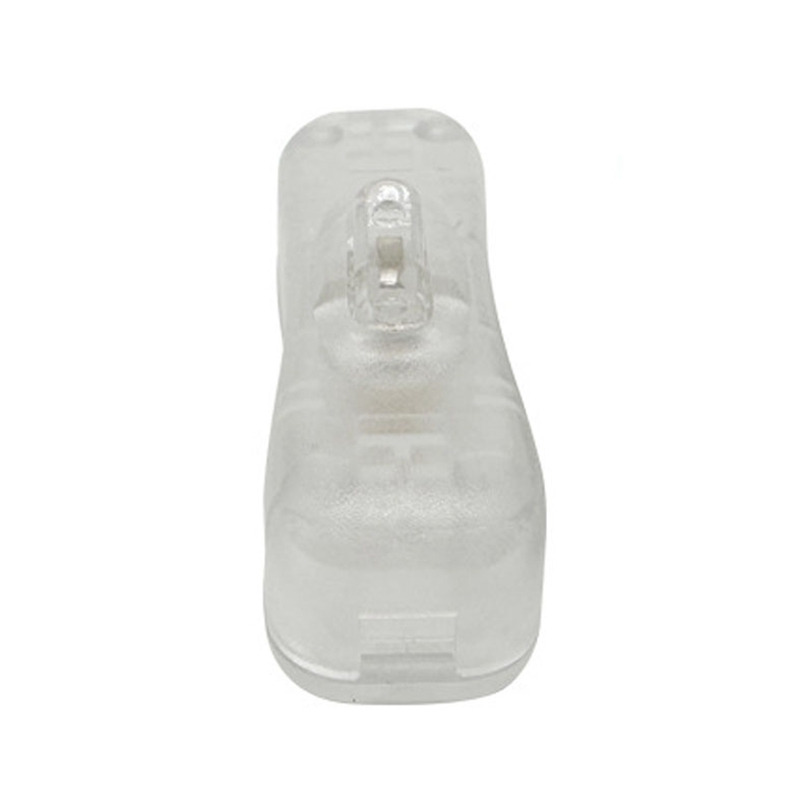

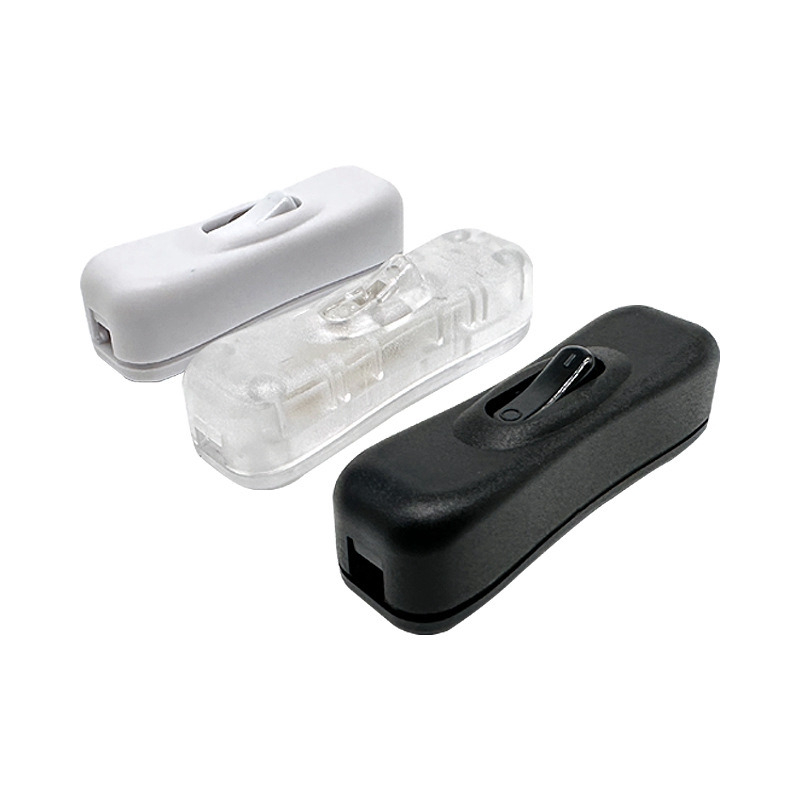

✅ Flexible Color Options: White, black, and transparent housing to match different cord and device aesthetics
✅ Safe & Durable: Flame retardant (UL94 V-2, 850°C glow wire test), eco-friendly materials, and long mechanical life

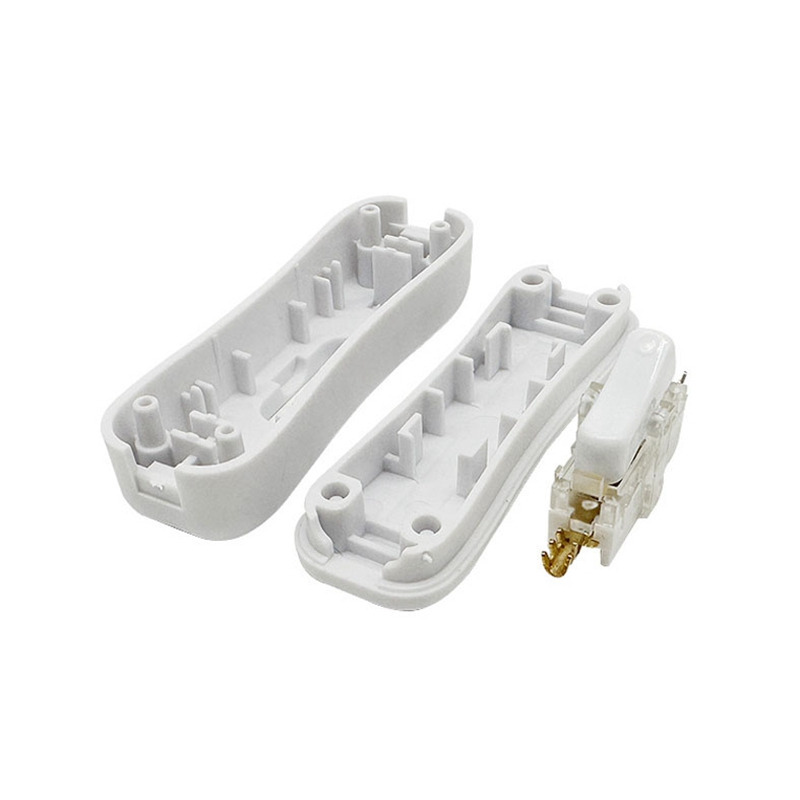

✅ Easy Installation: Snap-on design for quick assembly on 2-core/3-core power cords
✅ Wide Compatibility: Works with standard power cords (H03VVH2-F, 52RVV, SPT-2) up to 0.75mm²
Technical Specifications
| Parameter | Details |
| Model | 304 |
| Type | Single-pole on/off (in-line cord switch) |
| Housing Material | PC/PP (flame retardant) |
| Terminal Material | Eco-friendly nickel-plated copper |
| Color Options | White / Black / Transparent |
| Electrical Rating | 2A 250V AC (EU/JP); 2A 120V AC (US) |
| Flame Retardant Grade | UL94 V-2; 850°C glow wire test passed |
| Compatible Wires | H03VVH2-F 2×0.75mm² 52RVV 2×0.75mm² / 3×0.75mm² SPT-2 18AWG×2c |
| Certifications | CE, UL (E349147), PSE/JET, CQC, KEMA KC |
| Application | Lamps, small home appliances, power cords, electronic devices |
Applications
Table lamps, floor lamps, and LED lighting
Small household appliances (fans, humidifiers, chargers)
Power cords for office electronics and medical devices
Replacement switches for existing electrical products
