PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
Home » Products » Terminal Blocks » Din Rail Terminal Block » PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification
PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification

loading

PT4-TWIN 1 in 2 out push button replace phoenix NS35 din rail terminal block CE certification

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Voltage/Current: 800V/40A
Wire Capacity: 0.2-4mm2
Thickness :6.2mm
Housing Material: PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :10-12mm
Din rail mounted: NS35
Operation Temp.: -40-105degree
Noted :Can accept spelling assemble in din rail

  • PT4-TWIN

  • FEILON

  • PT4-TWIN

Availability:
Quantity:
Inquire Add to Basket



PT4-QUATTRO

 voltage/Current 800V/40A
Wire Capacity 24-10AWG/0.2-4mm2

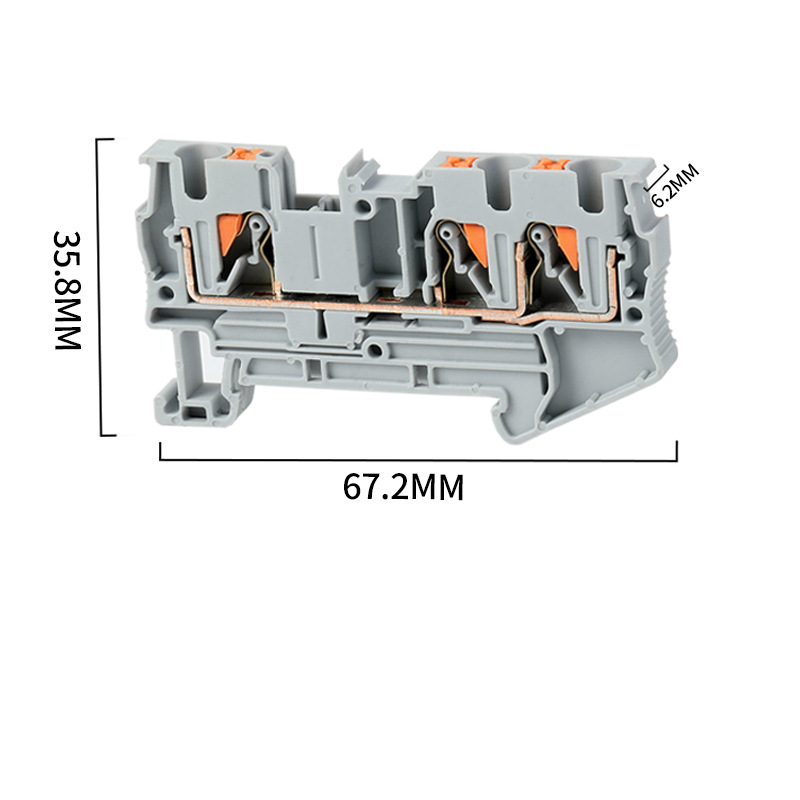

Size 67.2/35.8/6.2mm
Poles 1-XXP
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length 10-12mm
Din rail NS35
Operation Temp. -40-105degree
Noted Can accept spelling assemble in din rail

100-4

100-3


Previous:
Next:
PT4-Twin One in two out terminal block Phoenix terminal block din rail terminal block NS35 din rail terminal block din rail terminal block NS35 din rail terminal block CE certification push button terminal block Phoenix NS5 terminal block NS35 terminal block phoenix
