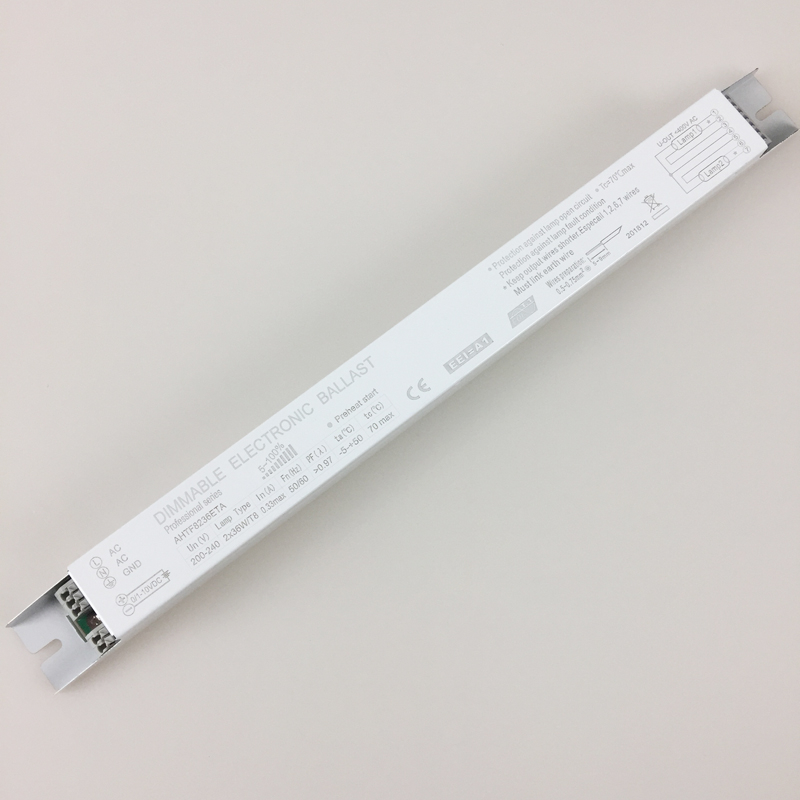

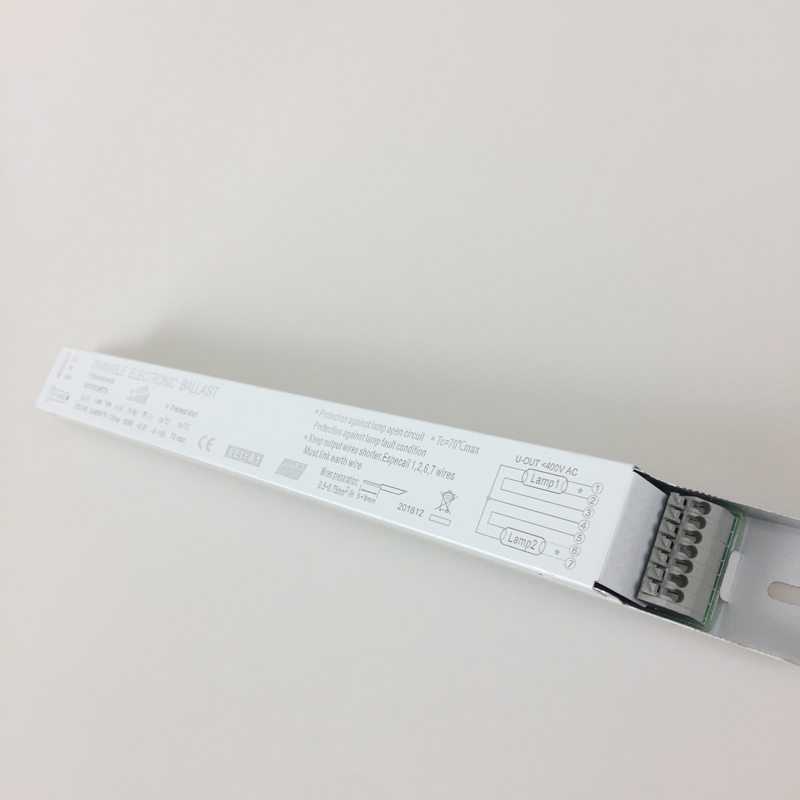

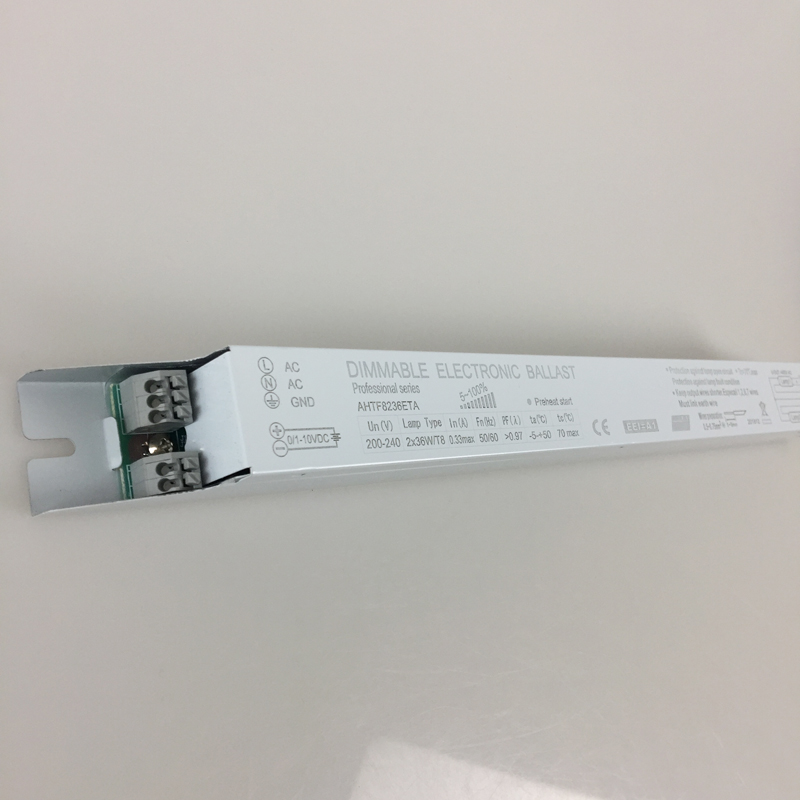

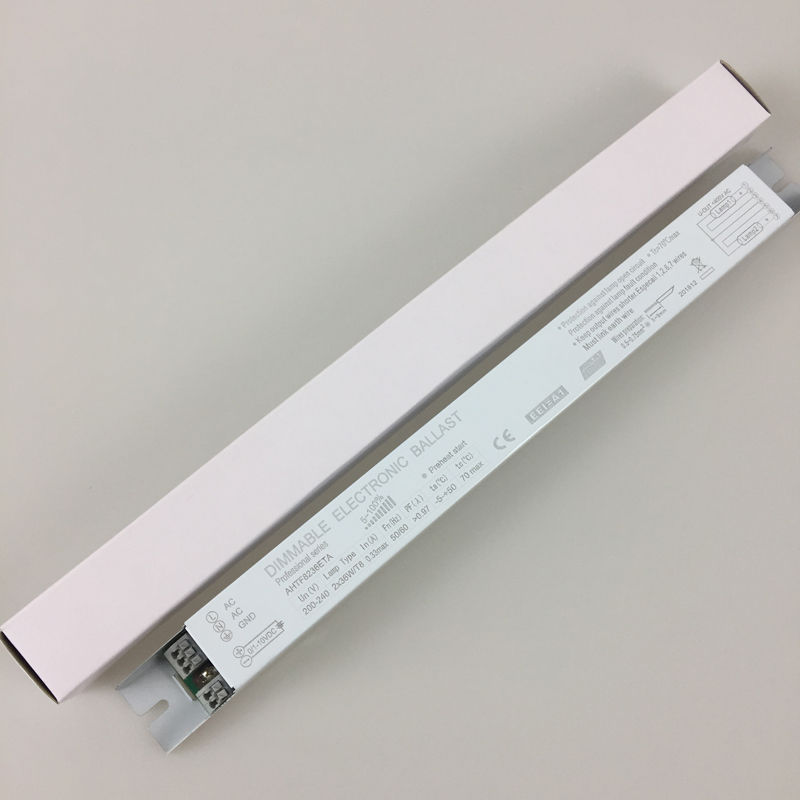

T8 Electronic Ballast 2*36w 0-10v T8 Dimmable Fluorescent Ballast

1.  Input 220V~240V/ or 110-277V,50/60 kHz;

2.  Dimming way:  DC 0/1~ 10V / or DALI dimmable / or Triac Trailing dimming,

3.  Dimmable range:  5~ 100%;

4.  For  fluorescent lamp, 1 lamp or 2 lamps

Features:

1. High Power Factor, Low Harmonic Wave, input voltage fluctuation can not influence optical power output;

2. Connect dimmer to dimming, disconnect dimmer is the brightest status, normal service condition;

3. IC to control circuit;

4. Frequency Conversion Preheat Start, the nice starting characteristic effectively prevent tube melanism and extend lamp life;

5. Protection against lamp open circuit, Protection against lamp fault condition. Automatically restart after replace light tube;

6. Use easy and safe standard wiring interface, White with lron Cover, suitable for different light fixture;

7. Dimming in arbitrary, energy saving,convenient control, wide application scope, safety, high stability, lt widely used in different lighting occasions, commercial lighting, industrial ligting,ho me lighting, meeting room, galler, studio , theater and outdoor lighting, etc, Meet the needs of different light environment and control needs.

Specification
