Specification Item | Details |
Product Model | FL-317 |
Product Type | Foot-Operated Step Dimming Switch, Corded Foot Switch, Pedal Dimming Switch |
Electrical Ratings | Insulation Voltage: 220V; Rated Current/Voltage: 2A 250V~, 3A 125V~ |
Contact Type | 1NC |
Operating Structure | Self-Reset, Single Pedal |
Cable Length | 1m (Customizable) |
Outline Size | 60*26*21mm |

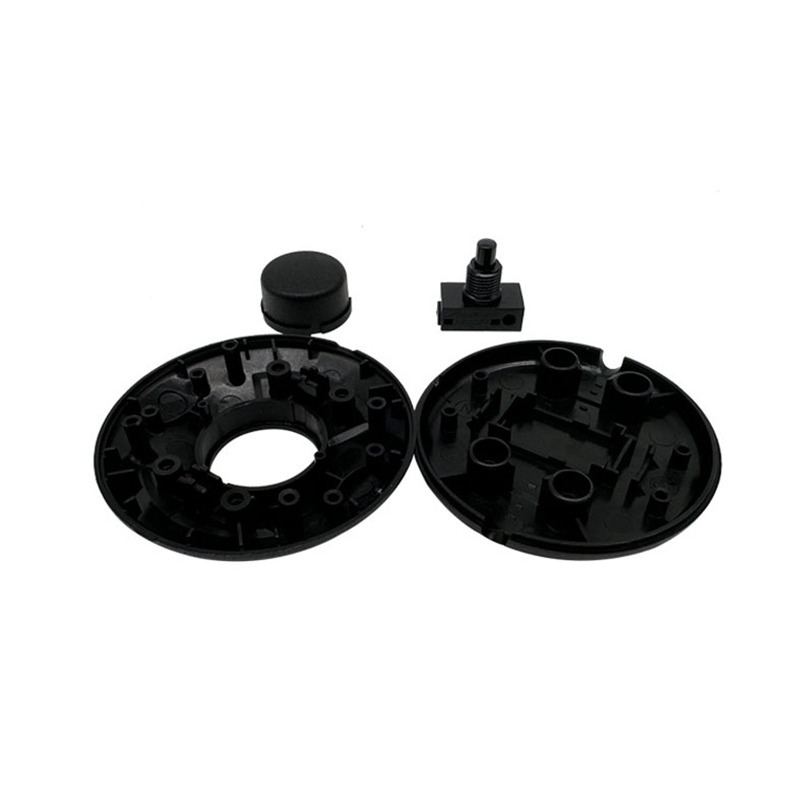

Material | Housing: PC/PP; Hardware: Eco-Friendly Copper with Nickel Plating |
Safety Certification | Glow Wire Test: 850℃; Flame Retardant Grade: UL94v-2 |
Compatible Cables | H03VVH2-F 2*0.75mm², SPT-2 18AWG*2C, 52RVV2*0.75mm², 52RVV3*0.75mm² |
Foot-Operated Step Dimming: Single pedal design with self-reset function, realizing step-by-step brightness adjustment and on/off switching through light foot pressing, freeing your hands completely for other work or activities.
High Safety Performance: Housing made of PC/PP material, hardware parts are eco-friendly copper with nickel plating, glow wire test up to 850℃, flame retardant grade UL94v-2, effectively preventing fire hazards and ensuring long-term safe use. Insulation voltage 220V, safe and reliable for daily use.
Durable & Long-Lasting: Wear-resistant pedal, anti-aging cord, strong load-bearing capacity, rated current/voltage 2A 250V~, 3A 125V~, stable performance, not easy to damage, service life up to 10,000 times of switching.

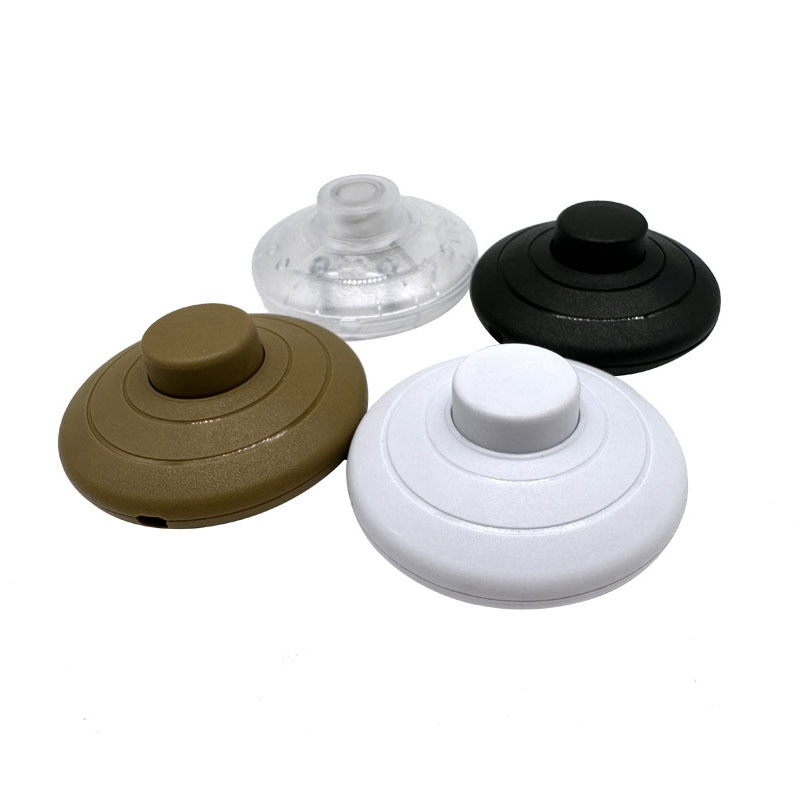

Multiple Color & Cable Options: Cable length 1m (customizable), outline size 60*26*21mm, available in black, white, copper, transparent and other colors, matching different styles of lamps and decoration environments. Compatible with H03VVH2-F 2*0.75mm², SPT-2 18AWG*2C and other common flexible cables.
Easy to Install & Use: No complicated wiring required, direct connection to lamps, plug-and-play (optional), simple operation, suitable for both professionals and ordinary users. Lightweight and compact design, does not take up space, easy to place under the desk, beside the bed or anywhere you need.
