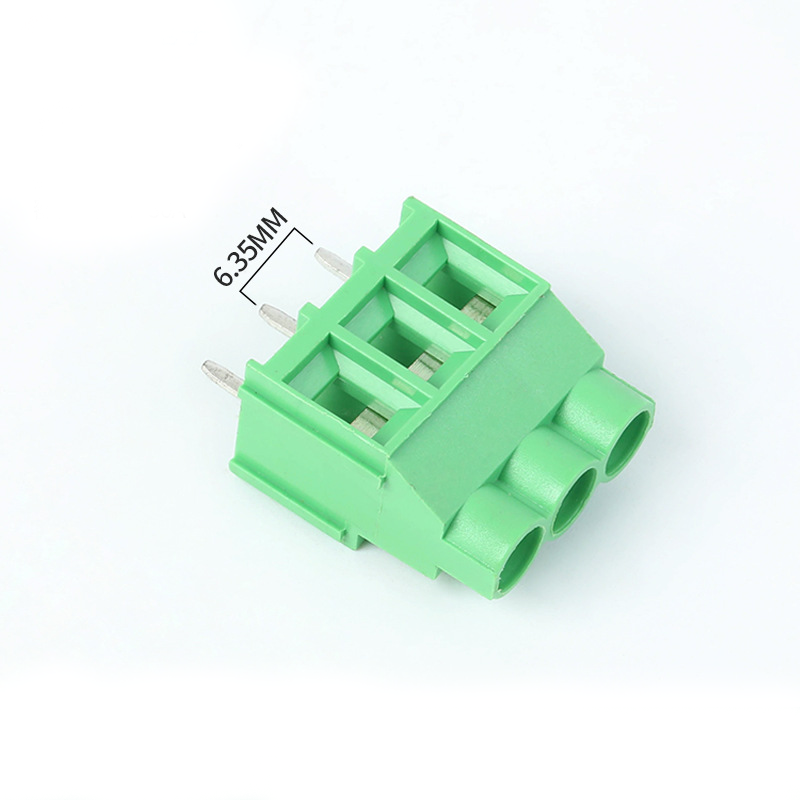

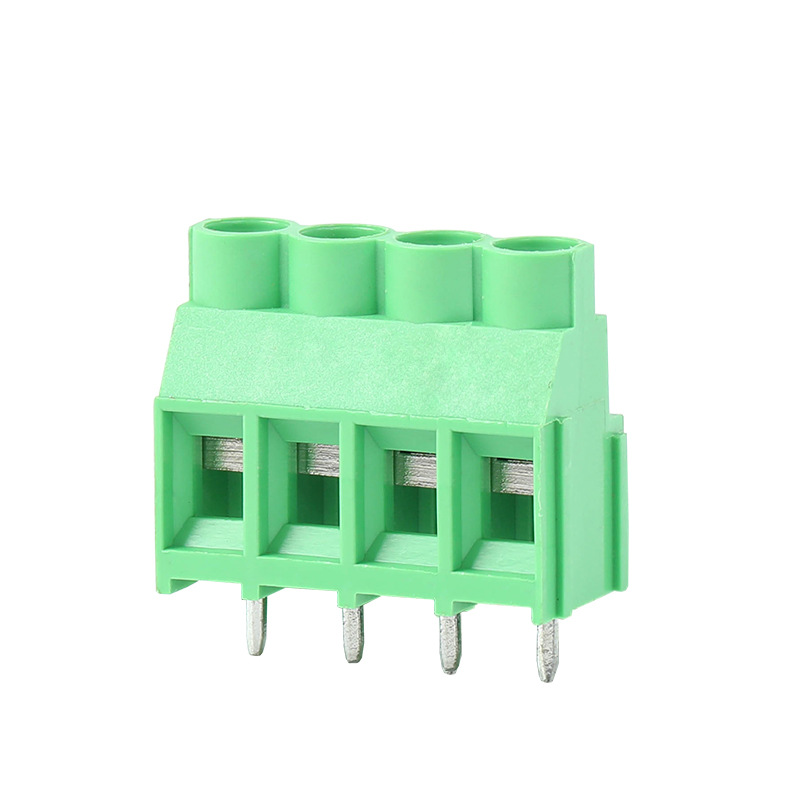

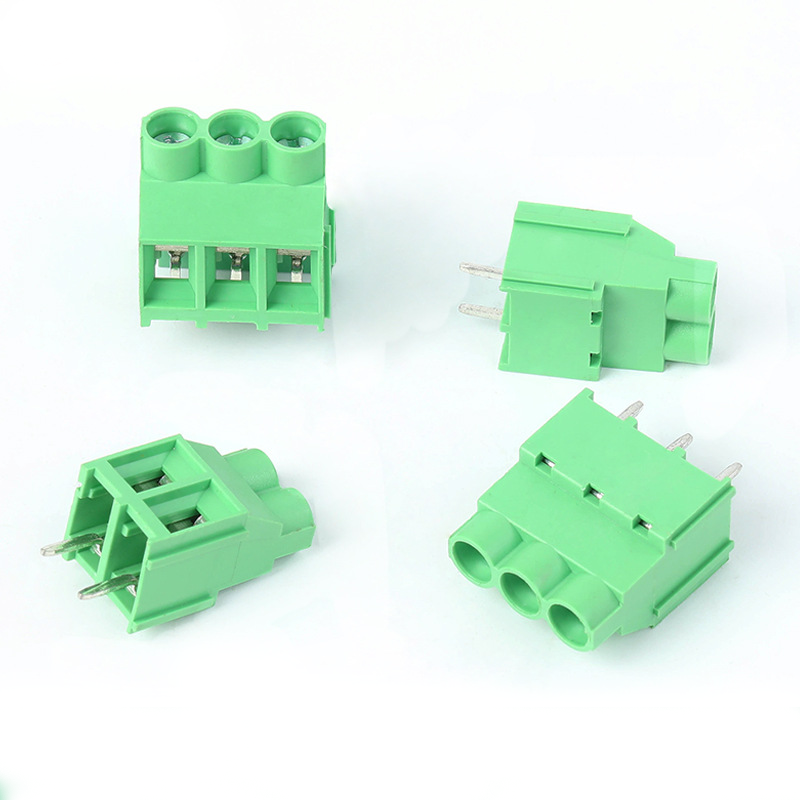

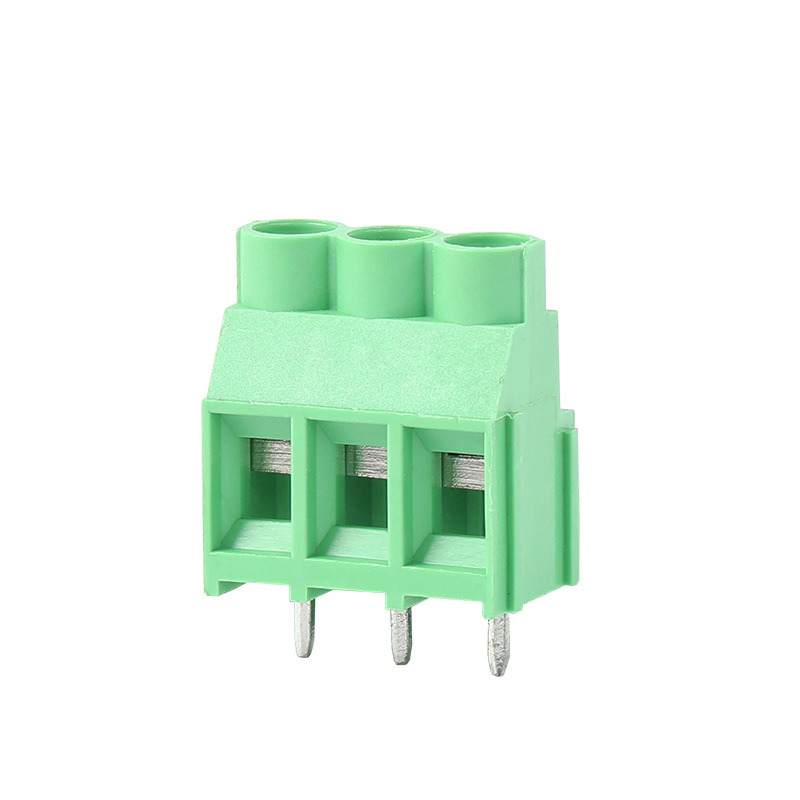

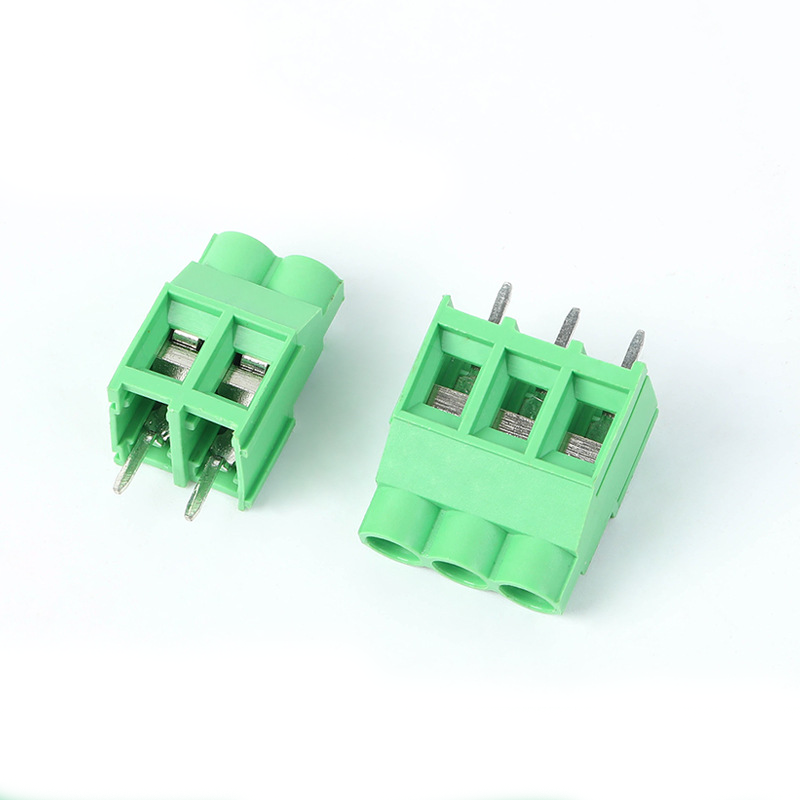

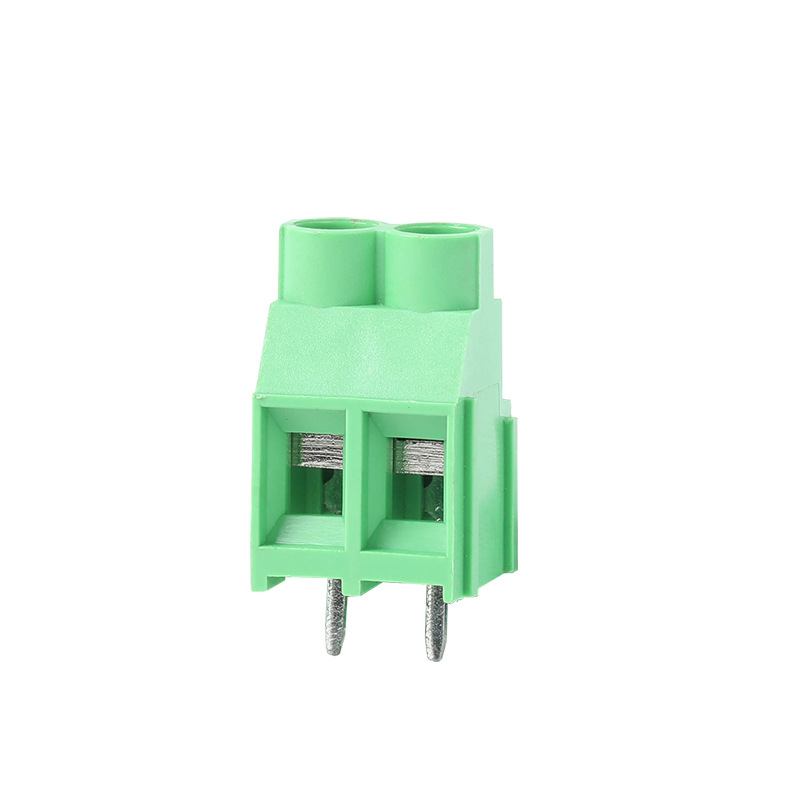

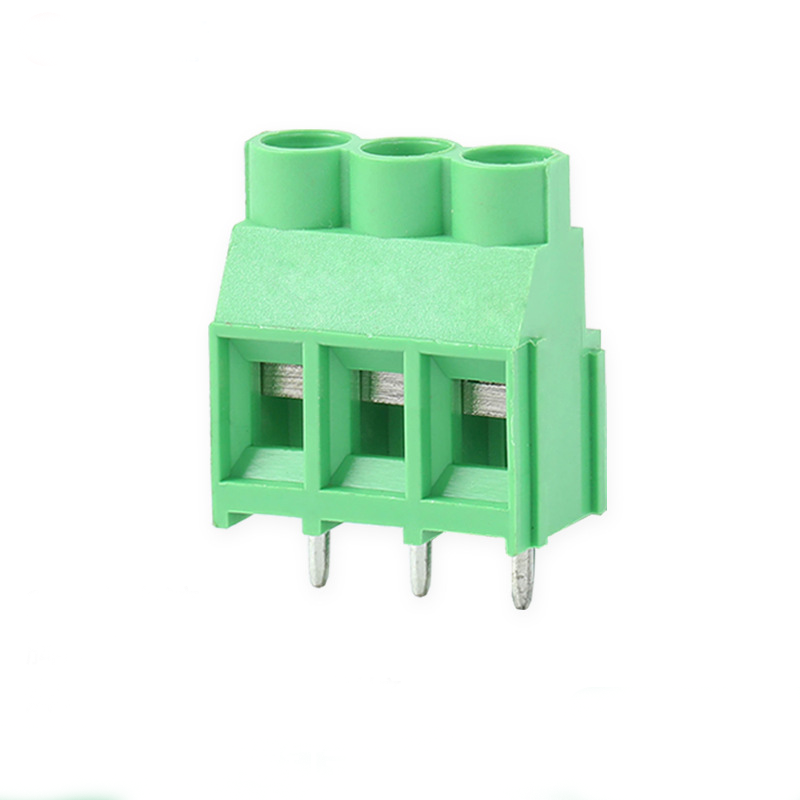

6.35 Screw Terminal Block KF635-6.35MM DG636-6.35 PCB Terminal Block High Current Terminal 2P 3P Can Be Spliced

Rated voltage/Current： 300V/30A
Wire Capacity： 26-10AWG

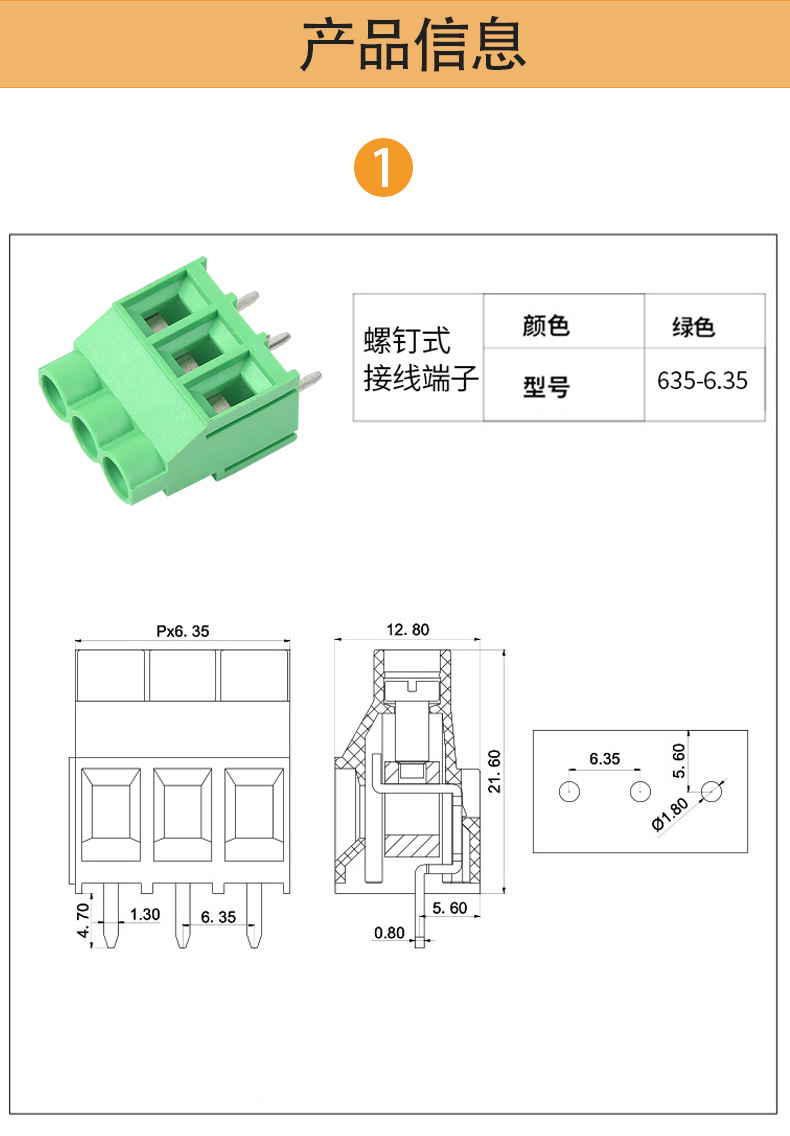

Pitch： 6.35mm
Poles ：02P-24P
Housing Material： PA66 UL94V-0
Contact Material ：Copper Alloy
Stripping Length ：6-7mm
Screw/Torque： M3/0.5N.M
Operation Temp.： -40-105degree
Noted ：The color and packing accept customer made

Model:
635-6.35-XXP
Brand:
FEILON
Code:
635-6.35-XXP

Availability:

Quantity:



Inquire Add to Basket

Product Description

635-6.35	Rated voltage/Current	300V/30A
	Wire Capacity	26-10AWG
	Pitch	6.35mm
	Poles	02P-24P
	Housing Material	PA66 UL94V-0
	Contact Material	Copper Alloy
	Stripping Length	6-7mm
	Screw/Torque	M3/0.5N.M
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made
