Equivalent Phoenix MSTB 2.5 5.08mm Pitch Male And Female Wire To Board 02P To 24P Green Pluggable Terminal Block

Views: 0 Author: Site Editor Publish Time: 2025-11-21 Origin: Site

Inquire

Classic screw wiring male and female pluggable terminal blocks, using UL94 V-0 flame-retardant plastic material， and Cu conductive material...it is have 5.0mm and 5.08mm pitch..the high quality and best price

It is have different assemble..to realize 90degree wiring, 180 degree wiring ..and also have open and seal socket to using different appliction area..

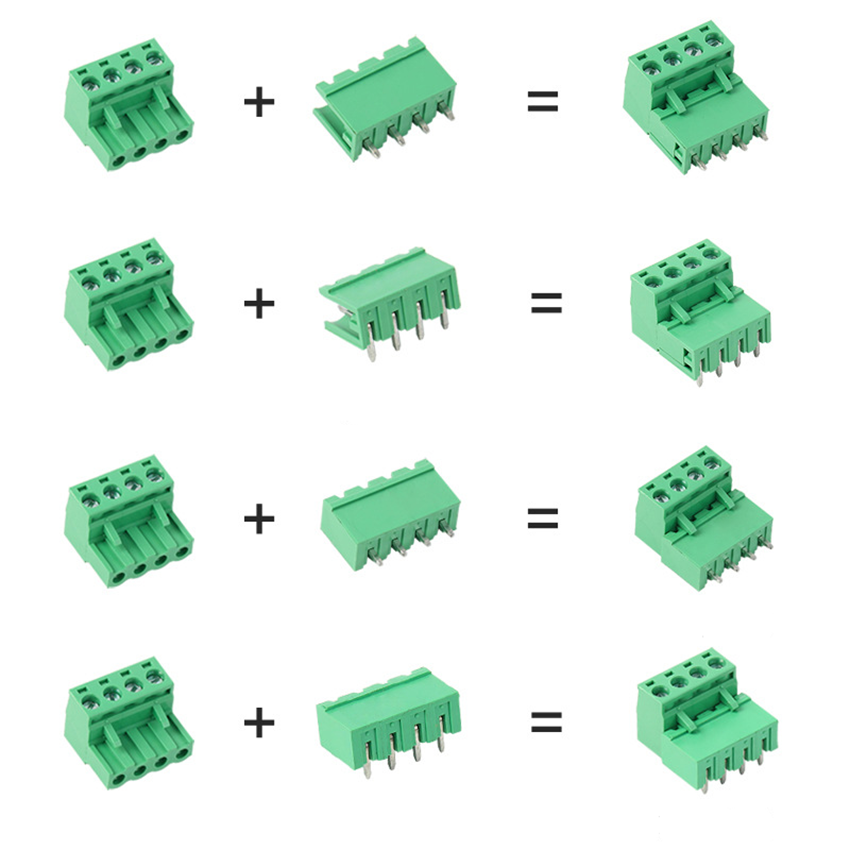

7-20

the details datasheet as followed:

Model: 2EDGK-5.08/5.0-XXP 2EDGRC/R-5.08/5.08-XXP 2EDGVC/C-5.08/5.0-XXP

Voltage/Current:300V/15A

Wire Range:0.2-2.5mm2 /28-12AWG

Housing Material: PA66 UL94 V-0

Contact material: Brass

Pitch:5.08mm/5.0mm

Screw: M2.5

Withstanding Voltage:AC 1500V/Min

Poles:02-24P

Color:Green

Certification: UL, CE,ROHS etc

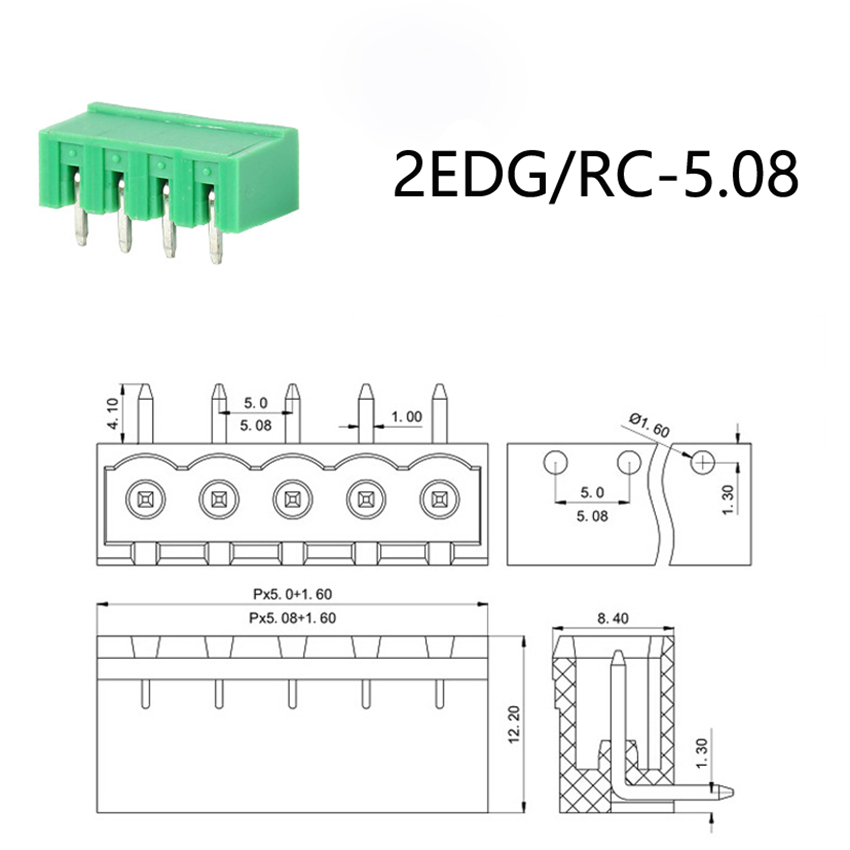

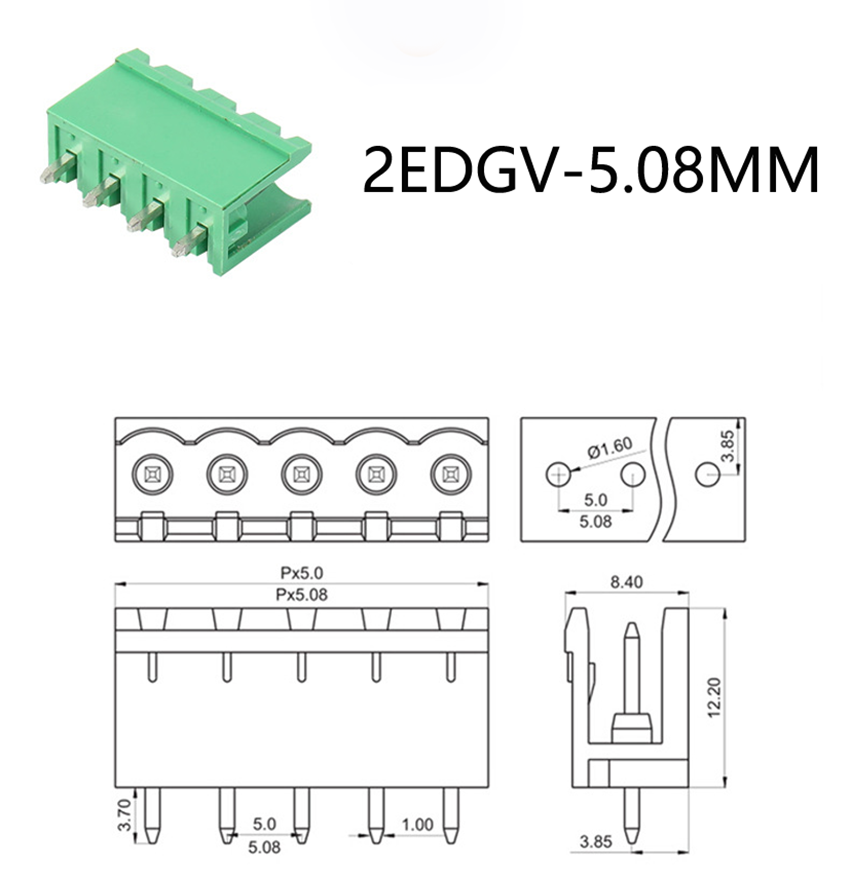

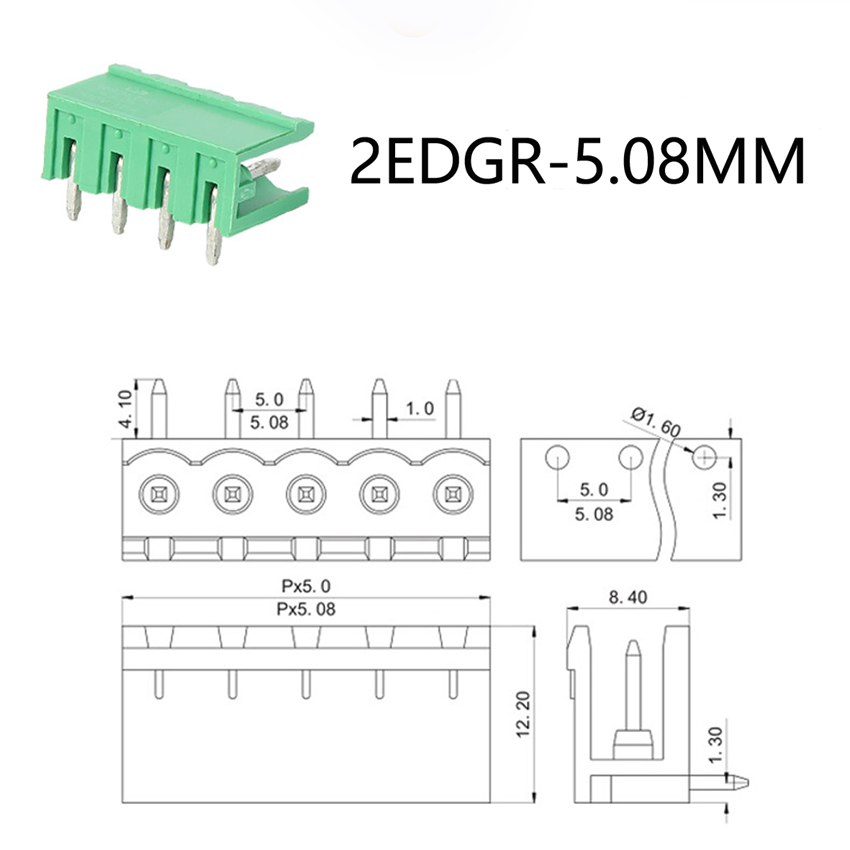

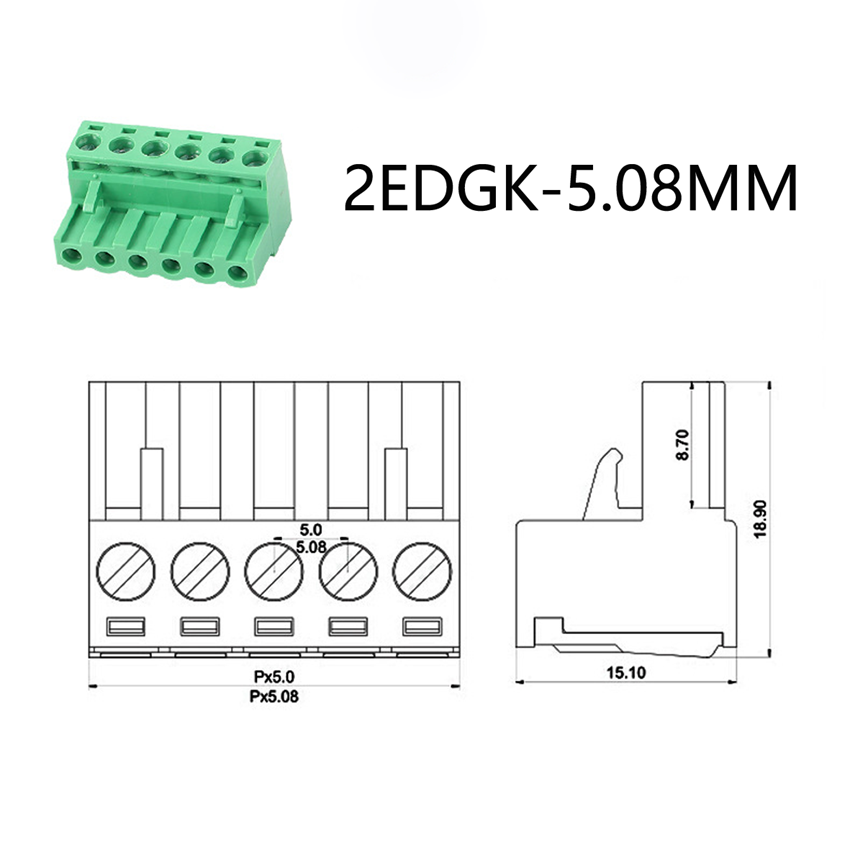

7-05 7-01 7-02 7-03

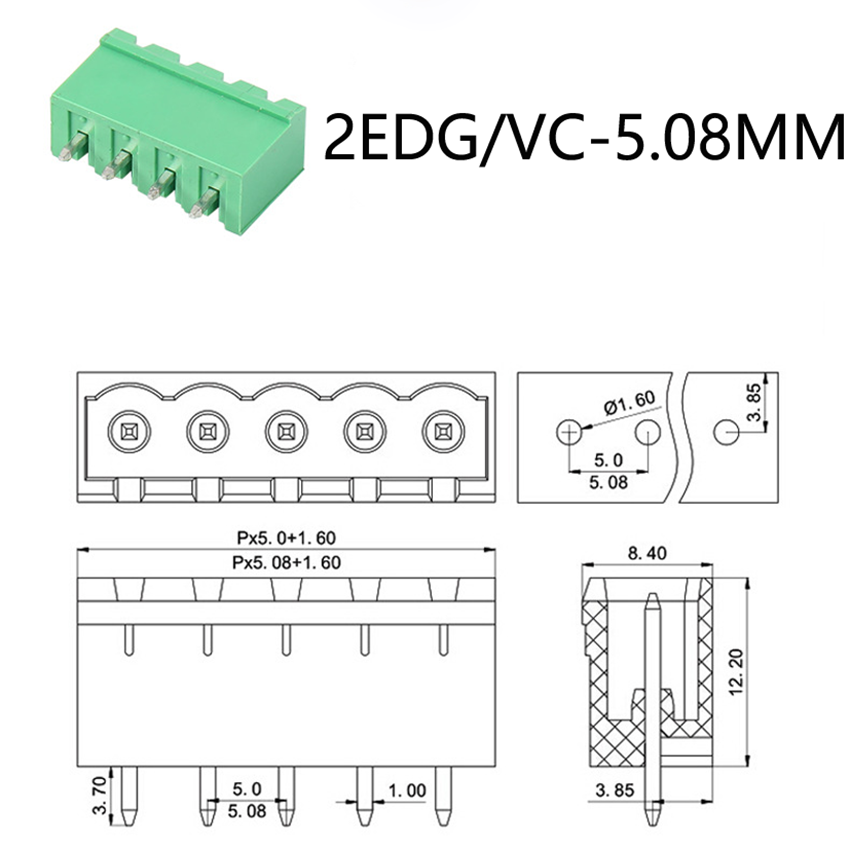

7-04

based on that good performance, the products widely using for electronics PCB board and lighting industry etc....and become most classic production in the terminal block products.

So please feel free to contact us at any time if need the samples to test.
