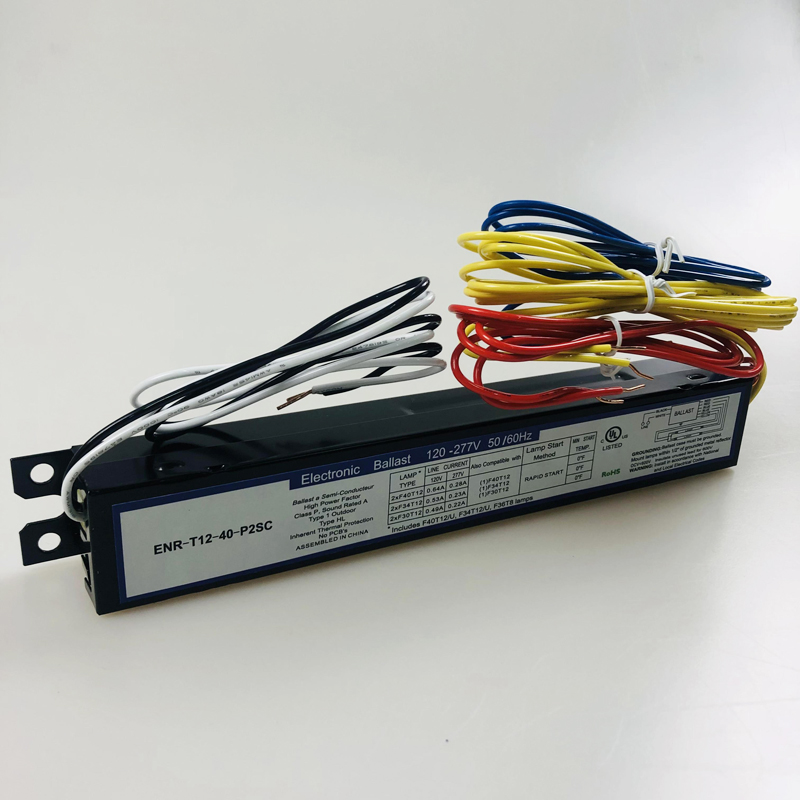

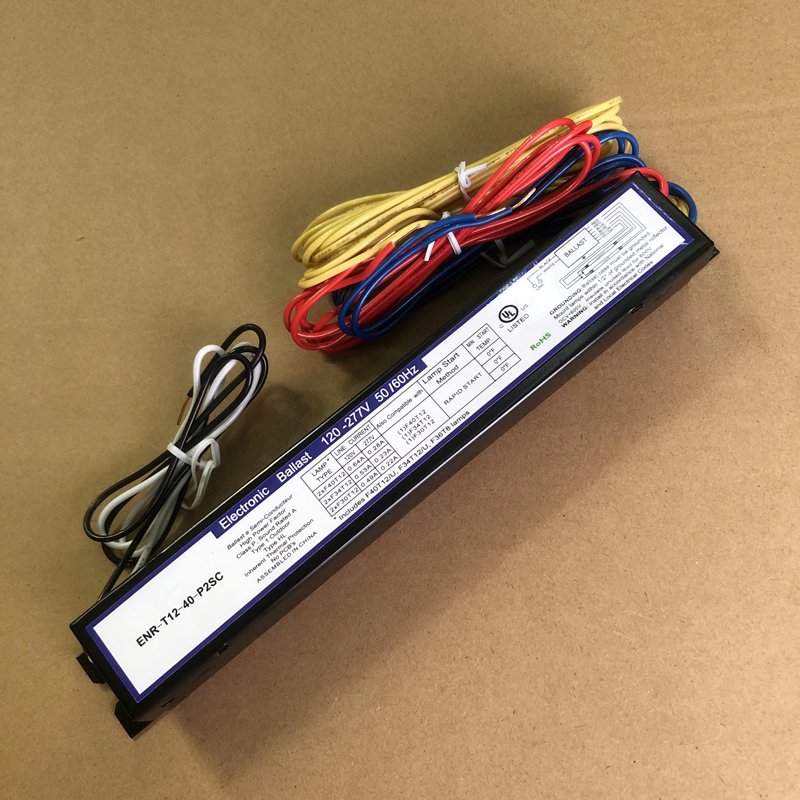

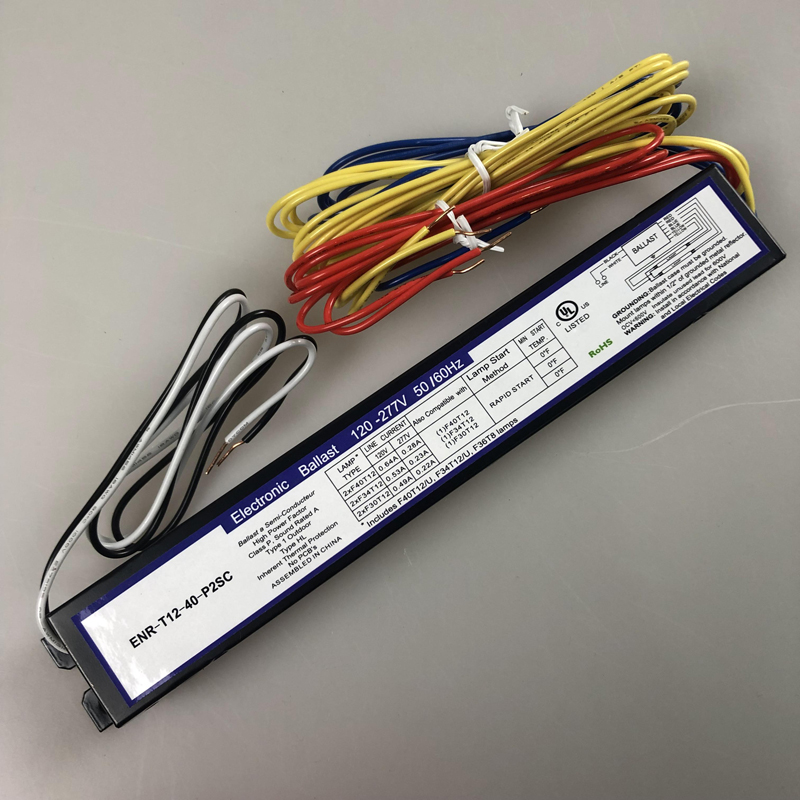

t12 fluorescent light ballast
FEILON OR OEM
Availability: | |
---|---|
Quantity: | |
Ballast Type: Electronic
Start Method: Instant Start

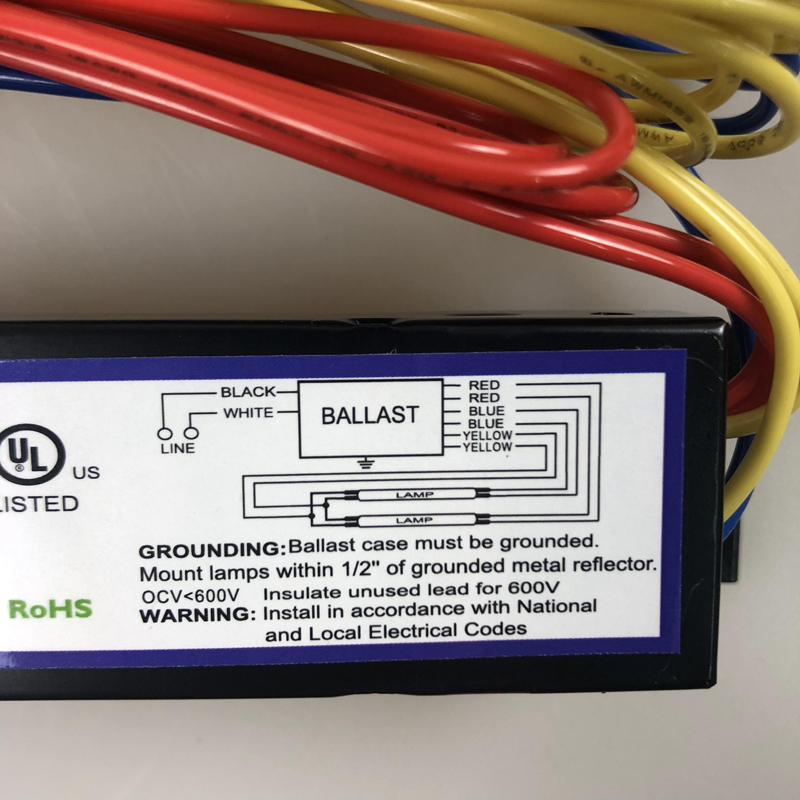

Lamp Connection: Parallel
Input Voltage Nominal: 120-277V, 50/60HZ
Sound Rating: A
AC Transient Protection: Cat. A3, ANSI/IEEE Standard C62.41
EMI: CFR47, Part18, FCC Non Consumer (Class A)
Performance: ANSI Standard C82.11
Harmonic: ANSI Standard C82.77
Potting: Full Potting
Specification

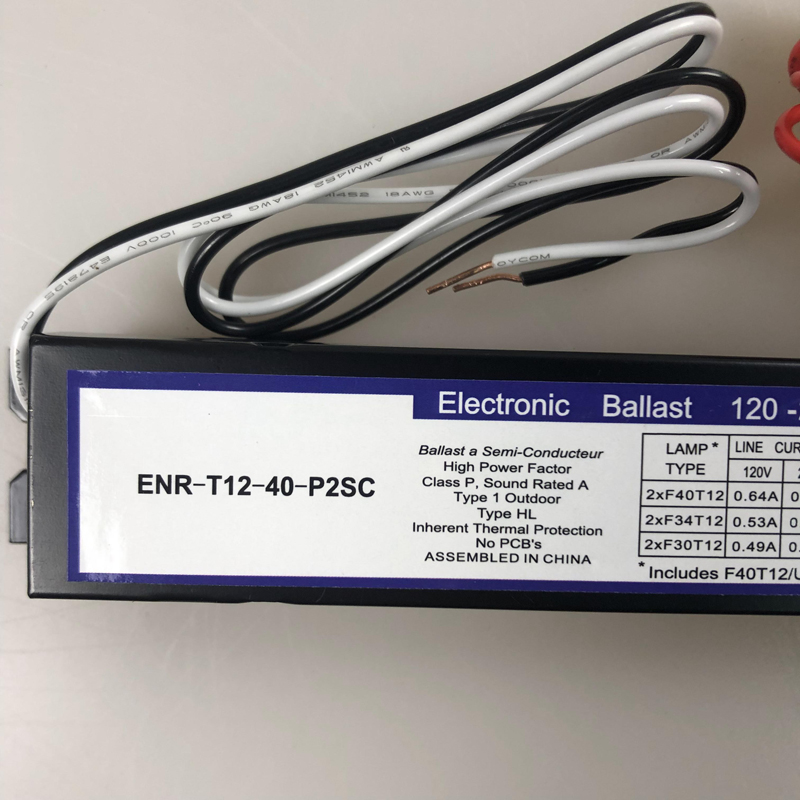

ENR-T12-40-P2SC | Voltage | Multi-Volt 120-277 Volt±10% |
Power | 30W/34W/40W(F30T12/F34T12/F40T12) | |
Lamp Quantity | 1/2PCS | |
PF | High Power factor PF>0.98 | |
THD | <10% | |
Ballast Frequency | >42KHz | |
Sound Rated | A | |
Lamp Operation | Parallel | |
Lamp Type | T12 Fluorescent lamp | |
Start Method | Rapid Start | |
Size | 240*34*29mm | |
Warranty | 5 years | |
Samples | Accepted | |
MOQ | 500PCS | |
Certificate | UL |
