Specification
The average rated life is 8000 hours
ceramic lamp set, antioxidant,radiation protection
Different diameter of lamp by customer's request.
are made of high purity quartz glass.
OEM & ODM acceptable

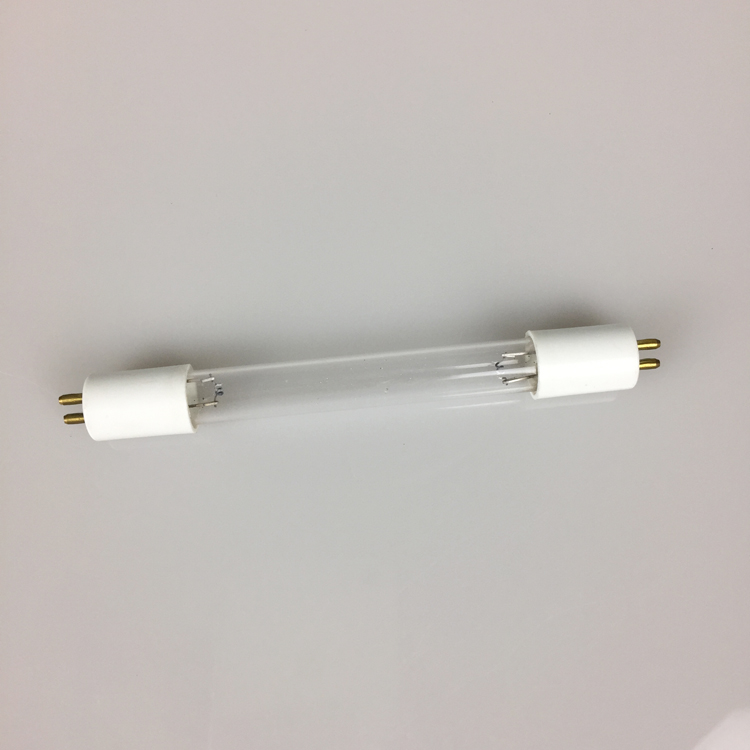

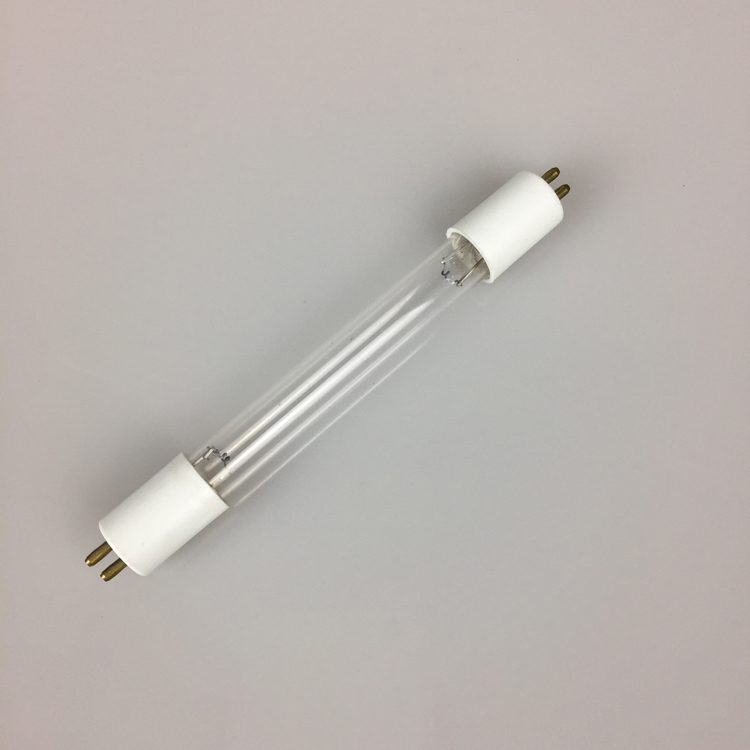

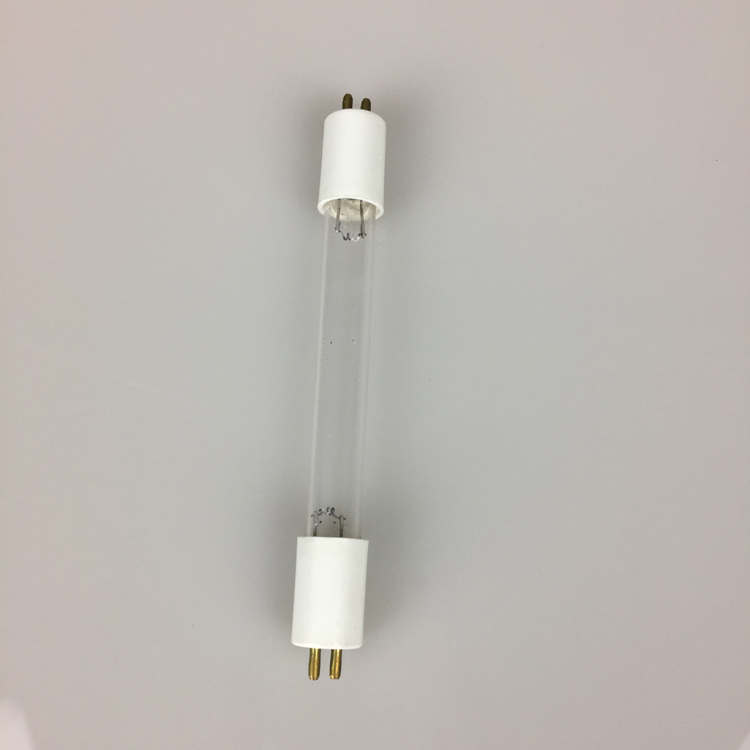

| Double-end 2pin UV Germicidal Lamp | |||||||
| Lamp Type | Tube Diameter | Length | Lamp Power | Lamp Current | Lamp Voltage | 254nm UV output @1M | Average Life |
| mm | mm | W | mA | V | μW/cm² | Hours | |
| ZW4S15W-Z135 | 15 | 135 | 4W | 160 | 18-24 | 12 | 8000 |
| ZW6S15W-Z212 | 15 | 212 | 6W | 160 | 36-48 | 18 | 8000 |
| ZW8S15W-Z287 | 15 | 287 | 8W | 145 | 48-64 | 28 | 8000 |
| ZW10S15W-Z331 | 15 | 331 | 10W | 220 | 55-70 | 30 | 8000 |
| ZW15S15W-Z437 | 15 | 437 | 15W | 300 | 59-71 | 44 | 8000 |
| ZW20S15W-Z589 | 15 | 589 | 20W | 320 | 71-91 | 75 | 8000 |
| ZW20S19W-Z589 | 19 | 589 | 20W | 320 | 68-84 | 75 | 8000 |
| ZW30S15W-Z894 | 15 | 894 | 30W | 300 | 112-132 | 107 | 8000 |
| ZW30S19W-Z894 | 19 | 894 | 30W | 300 | 112-132 | 107 | 8000 |
| ZW40S15W-Z1199 | 15 | 1199 | 40W | 330 | 120-140 | 117 | 8000 |
| ZW40S19WZ1199 | 19 | 1199 | 40W | 330 | 110-130 | 117 | 8000 |
| Remark: No o-ozone, ozone and high ozone uv lamp; G5/G13 Lampholder; Can be customized the power and length based on customer requirements; | |||||||
Specification
The average rated life is 8000 hours
ceramic lamp set, antioxidant,radiation protection
Different diameter of lamp by customer's request.
are made of high purity quartz glass.
OEM & ODM acceptable
| Double-end 2pin UV Germicidal Lamp | |||||||
| Lamp Type | Tube Diameter | Length | Lamp Power | Lamp Current | Lamp Voltage | 254nm UV output @1M | Average Life |
| mm | mm | W | mA | V | μW/cm² | Hours | |
| ZW4S15W-Z135 | 15 | 135 | 4W | 160 | 18-24 | 12 | 8000 |
| ZW6S15W-Z212 | 15 | 212 | 6W | 160 | 36-48 | 18 | 8000 |
| ZW8S15W-Z287 | 15 | 287 | 8W | 145 | 48-64 | 28 | 8000 |
| ZW10S15W-Z331 | 15 | 331 | 10W | 220 | 55-70 | 30 | 8000 |
| ZW15S15W-Z437 | 15 | 437 | 15W | 300 | 59-71 | 44 | 8000 |
| ZW20S15W-Z589 | 15 | 589 | 20W | 320 | 71-91 | 75 | 8000 |
| ZW20S19W-Z589 | 19 | 589 | 20W | 320 | 68-84 | 75 | 8000 |
| ZW30S15W-Z894 | 15 | 894 | 30W | 300 | 112-132 | 107 | 8000 |
| ZW30S19W-Z894 | 19 | 894 | 30W | 300 | 112-132 | 107 | 8000 |
| ZW40S15W-Z1199 | 15 | 1199 | 40W | 330 | 120-140 | 117 | 8000 |
| ZW40S19WZ1199 | 19 | 1199 | 40W | 330 | 110-130 | 117 | 8000 |
| Remark: No o-ozone, ozone and high ozone uv lamp; G5/G13 Lampholder; Can be customized the power and length based on customer requirements; | |||||||
