Specification
No o-ozone, ozone and high ozone uv lamp;
Can be customized the power and length based on customer requirements;

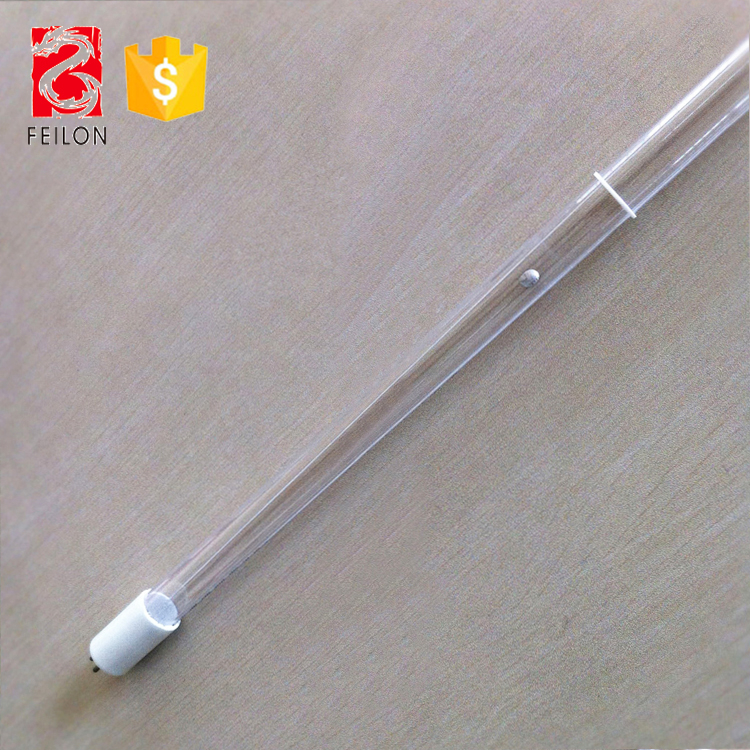

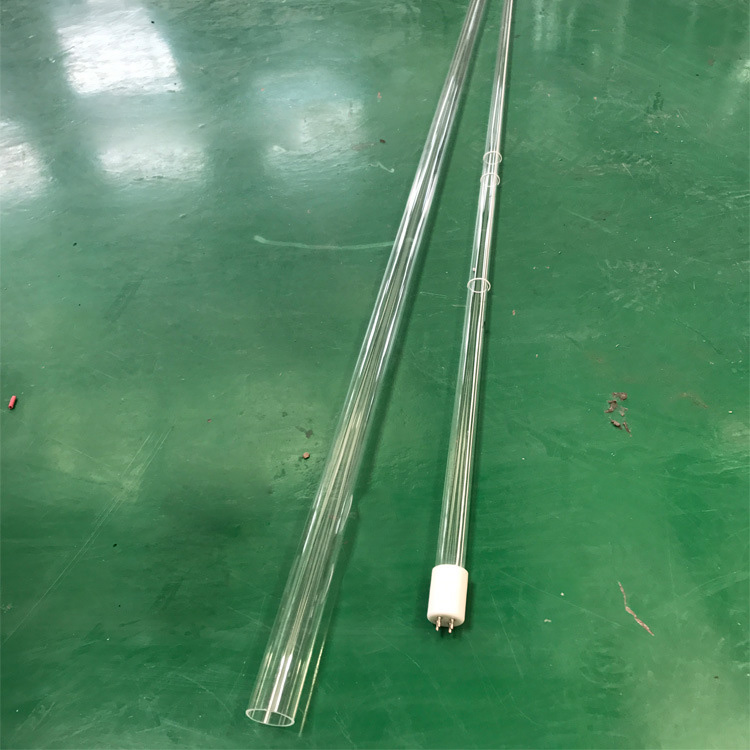

| High-power amalgam lamp | |||||||
| Lamp Type | Tube Diameter | Length | Lamp Power | Lamp Current | Lamp Voltage | 254nm UV output @1M | Average Life |
| mm | mm | W | A | V | μm/cm² | Hours | |
| ZW42D15W-Z357 | 15 | 357 | 42W | 1.2 | 36 | 110 | 12000 |
| ZW105D15W-Z843 | 15 | 843 | 105W | 1.2 | 88 | 320 | 12000 |
| ZW127D15W-Z1000 | 15 | 1000 | 127W | 1.2 | 107 | 370 | 12000 |
| ZW190D15W-Z1554 | 15 | 1554 | 190W | 1.2 | 164 | 500 | 12000 |
| ZW57D19W-Z357 | 19 | 357 | 57W | 1.8 | 32 | 130 | 12000 |
| ZW127D19W-Z843 | 19 | 843 | 127W | 1.8 | 71 | 400 | 12000 |
| ZW150D19W-Z1000 | 19 | 1000 | 150W | 1.8 | 84 | 460 | 12000 |
| ZW240D19W-Z1554 | 19 | 1554 | 240W | 1.8 | 134 | 630 | 12000 |
| ZW65D19W-Z357 | 19 | 357 | 65W | 2.1 | 31 | 140 | 12000 |
| ZW172D19W-Z843 | 19 | 843 | 172W | 2.1 | 82 | 490 | 12000 |
| ZW207D19W-Z1000 | 19 | 1000 | 207W | 2.1 | 99 | 570 | 12000 |
| ZW320D19W-Z1554 | 19 | 1554 | 320W | 2.1 | 154 | 750 | 12000 |
