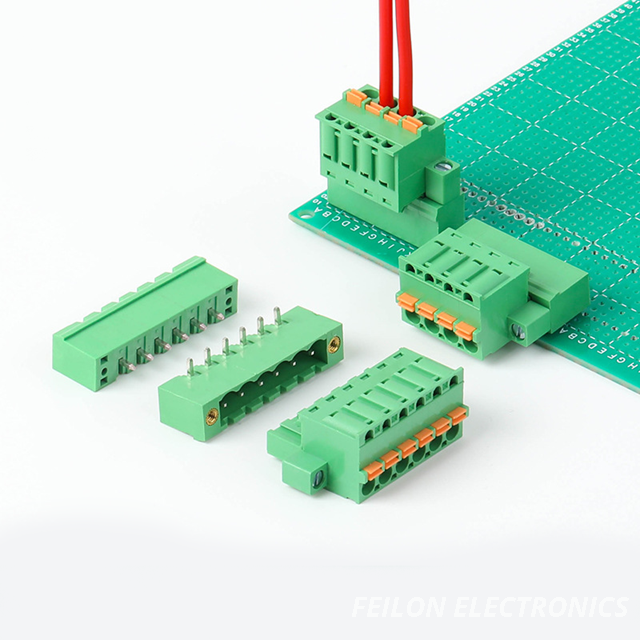

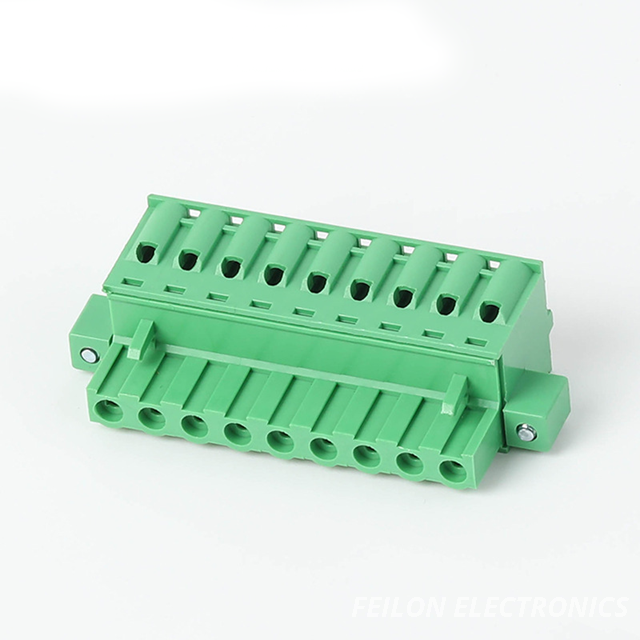

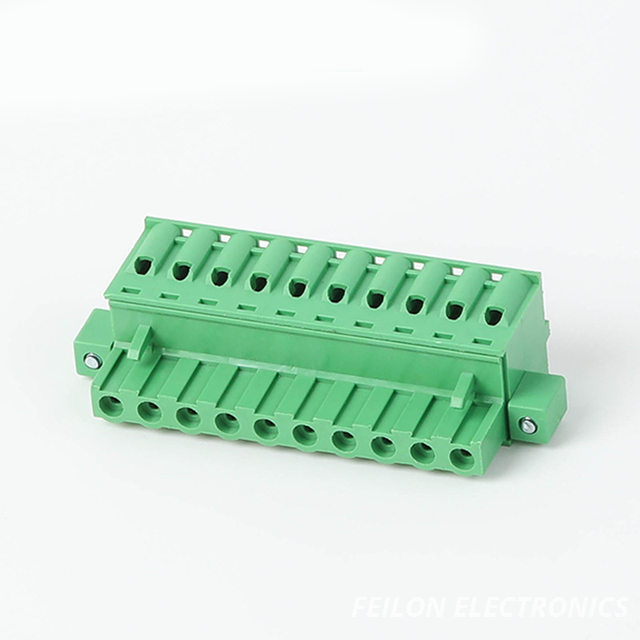

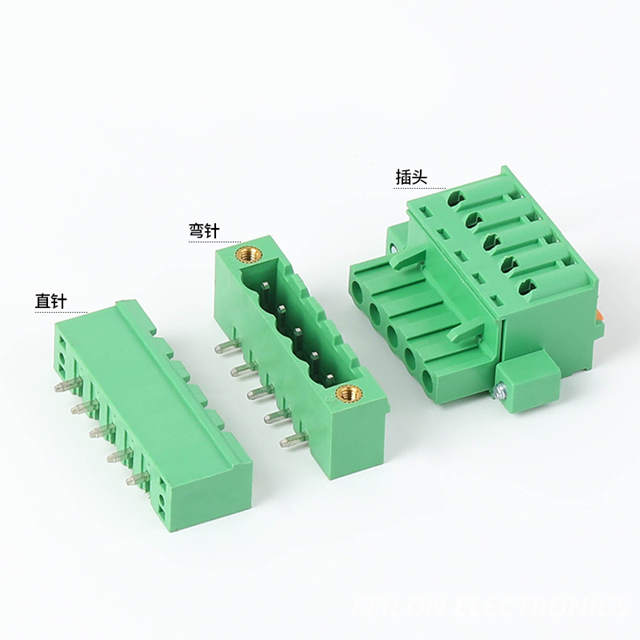

2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
Home » Products » Terminal Blocks » Pluggable Terminal Block » 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block
2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block 2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block

loading

2EDGKDM-5.08mm Pitch Push-Pull Spring Terminal Male Plug Ear Mount PCB Board Connector Replace Phoenix FKC 2,5 Spring Wiring Terminal Block

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Rated voltage/Current(UL) :300V/10A
Rated voltage/Current(IEC) :320V/12A
Wire Capacity: 28-12AWG/0.2-2.5mm2
Pitch: 5.08mm
Poles: 2P~24P
Housing Material  : PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :9-10MM
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made

  • 2EDGKDM-5.08

  • FEILON

  • 2EDGKDM-5.08

Availability:
Quantity:
Inquire Add to Basket

Model: 2EDGKDM-5.08-XXP


Rated voltage/Current(UL) :300V/10A

Rated voltage/Current(IEC) :320V/12A
Wire Capacity: 28-12AWG/0.2-2.5mm2
Pitch: 5.08mm
Poles: 2P~24P
Housing Material  : PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :9-10MM
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made

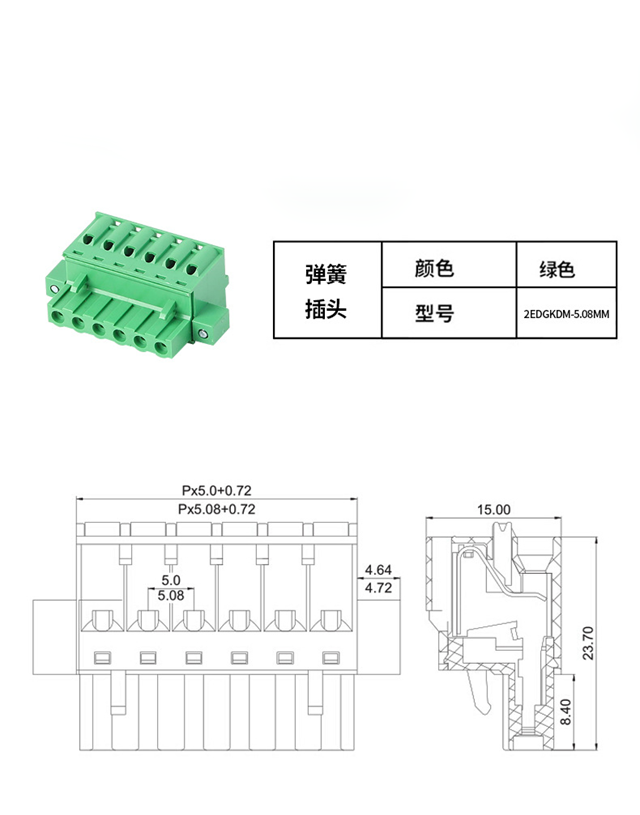

13-01

13-02

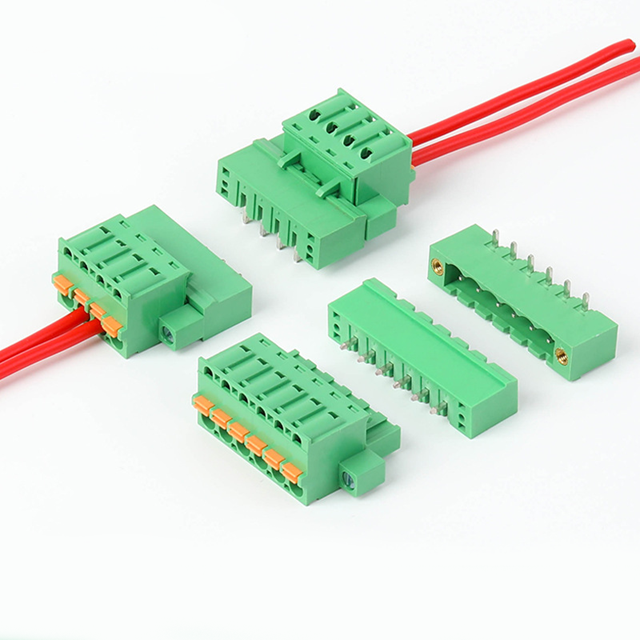

13-18

Previous:
Next:
2EDGKDM-5.08 5.08mm pitch terminal block push in terminal block spring terminal block male terminal block ear mount terminal block PCB board terminal connector replace phoenix terminal block spring wiring terminal block Terminal block
