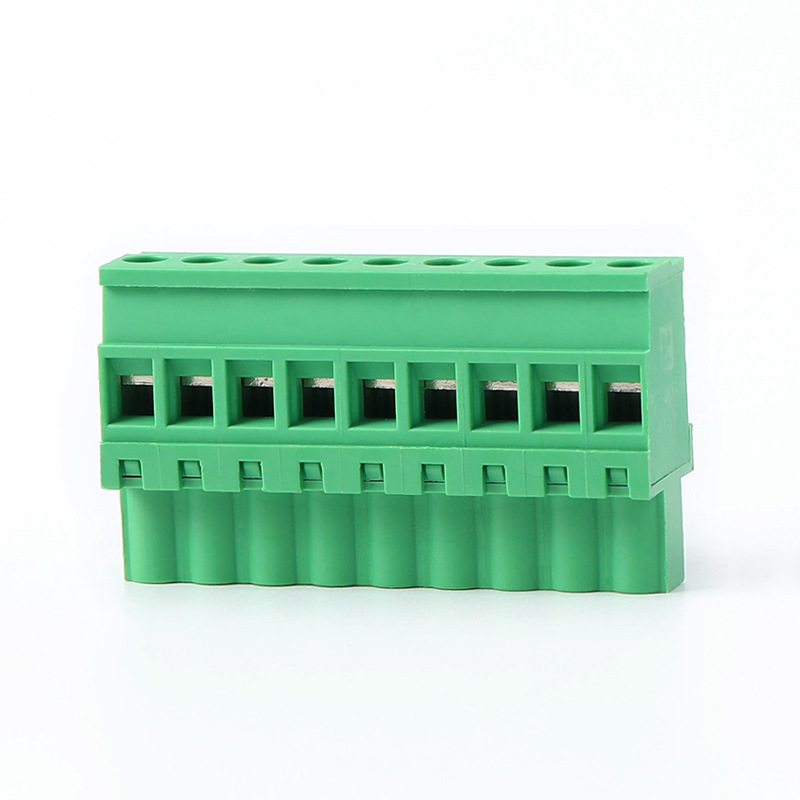

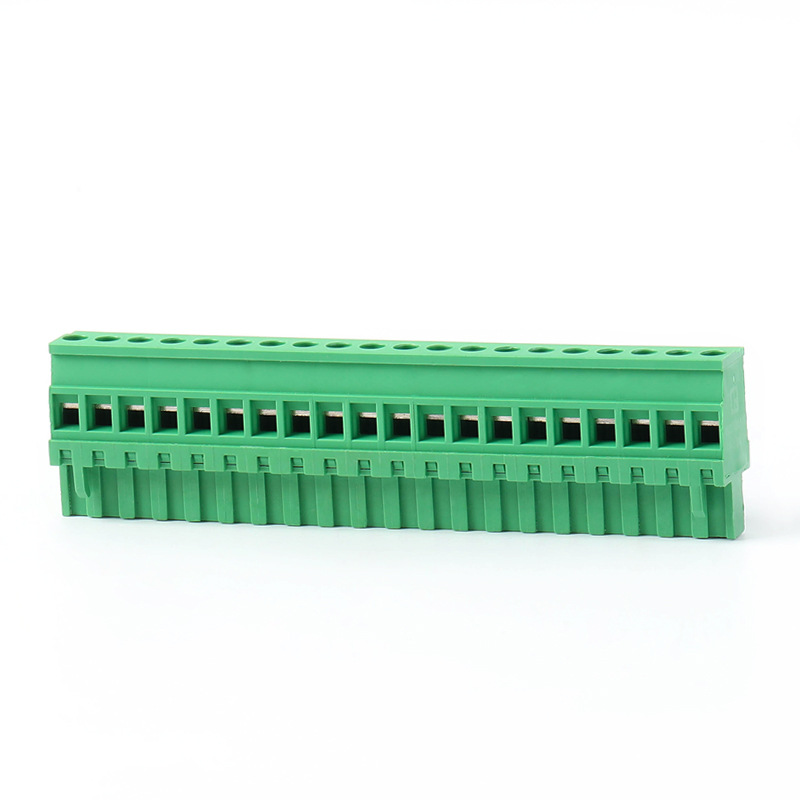

Horizontal wiring screw connect plug-in plug terminal 2EDGKA-5.08 2EDGKB-5.08mm Copper contact plug male terminal block connector

Rated voltage/Current: 300V/15A
Wire Capacity: 28-12AWG
Pitch :5.0,5.08mm
Poles :2P-24P
Housing Material: PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :7-8mm
Screw/Torque: M3/0.5N.M
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made

Model:

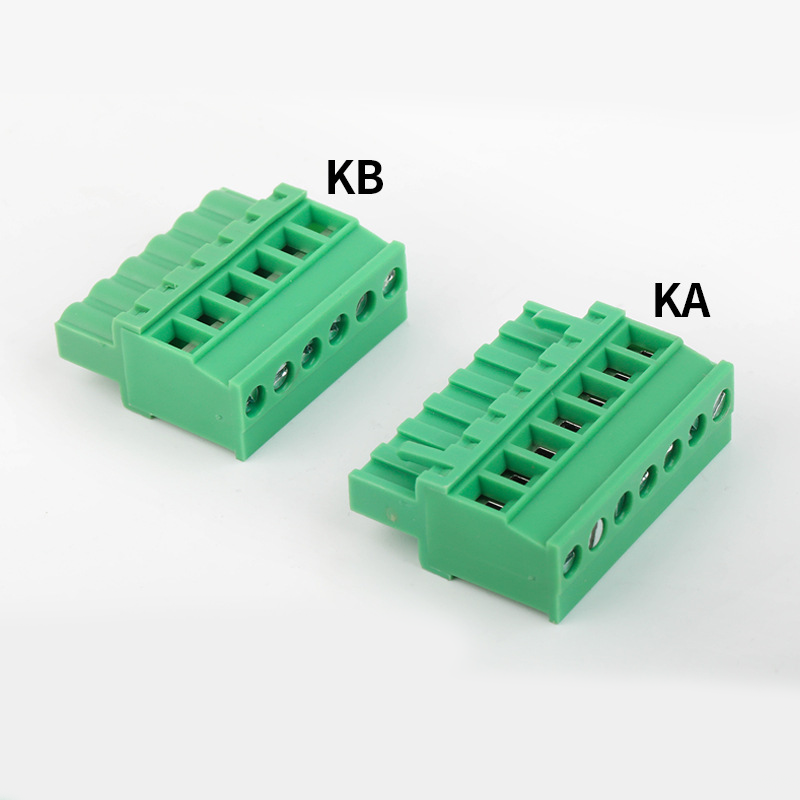

2EDGKA-5.08-XXP 2EDGKB-5.08-XXP
Brand:
FEILON
Code:
2EDGKA-5.08-XXP 2EDGKB-5.08-XXP

Availability:

Quantity:



Inquire Add to Basket

Product Description

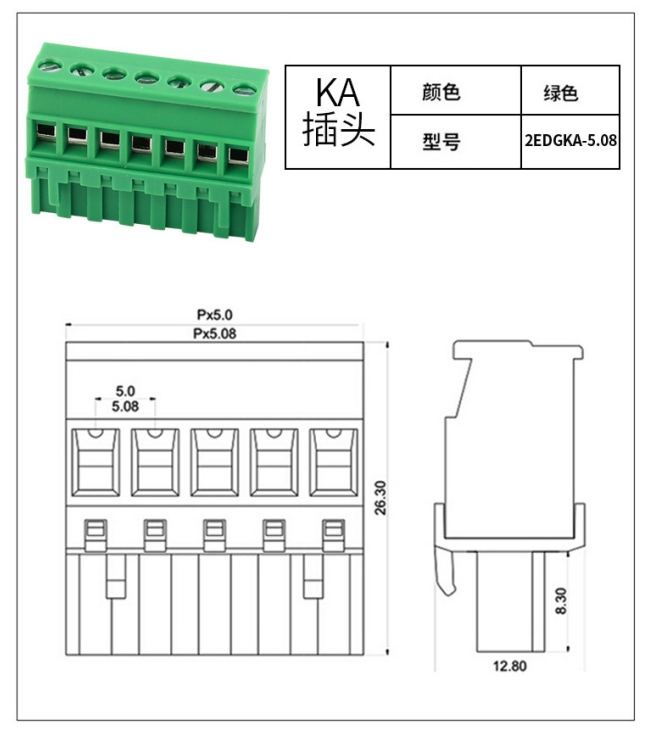

2EDGKA-5.0,5.08	Rated voltage/Current	300V/15A
	Wire Capacity	28-12AWG
	Pitch	5.0,5.08mm
	Poles	2P-24P
	Housing Material	PA66/UL94V-0
	Contact Material	Copper alloy
	Stripping Length	7-8mm
	Screw/Torque	M3/0.5N.M
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made

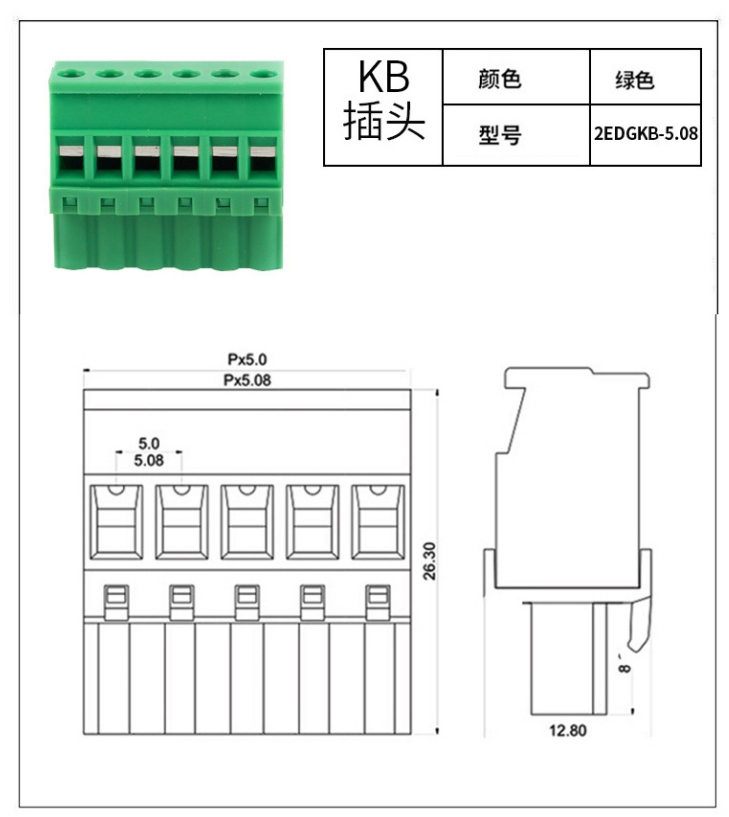

2EDGKB-5.0,5.08	Rated voltage/Current	300V/15A
	Wire Capacity	28-12AWG
	Pitch	5.0,5.08mm
	Poles	2P-24P
	Housing Material	PA66/UL94V-0
	Contact Material	Copper alloy
	Stripping Length	7-8mm
	Screw/Torque	M3/0.5N.M
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made
