4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
Home » Products » Terminal Blocks » Pluggable Terminal Block » 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block
4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block 4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block

loading

4.0MM PLC Power Terminal Block Suitable for Siemens S7-200 2EDGKG Plug-in Terminal Block

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Rated voltage/Current :300V/15A
Wire Capacity: 2.5mm2
Pitch: 4.0mm
Poles: 2P~20P
Housing Material  : PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :5-6MM
Screw/Torque :M2/0.2 N.M
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made

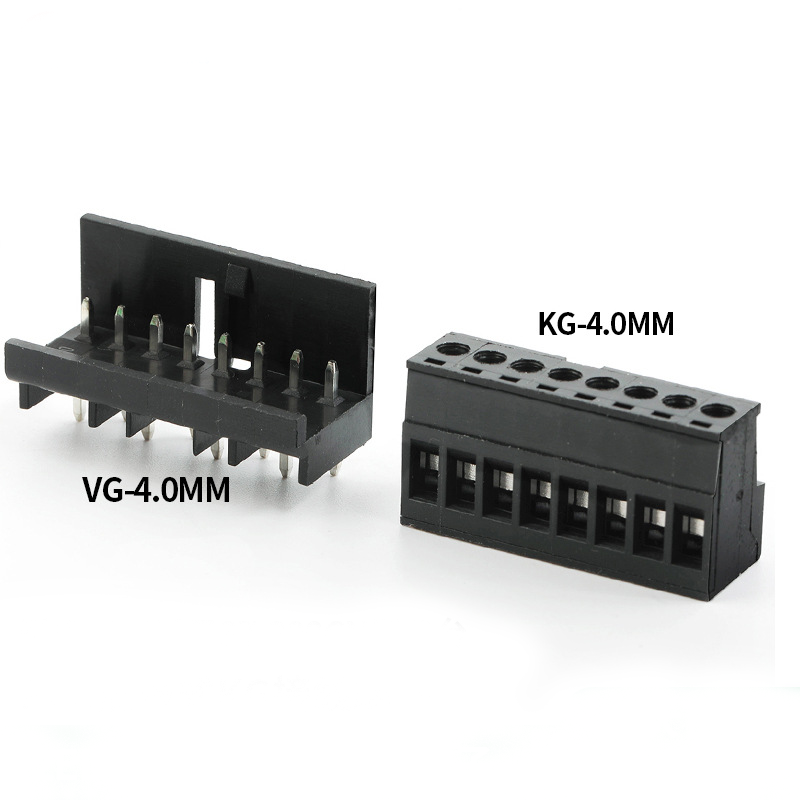

  • 2EDGKG-4.0-XXP 2EDGVG-4.0-XXP

  • FEILON

  • 2EDGKG-4.0-XXP 2EDGVG-4.0-XXP

Availability:
Quantity:
Inquire Add to Basket

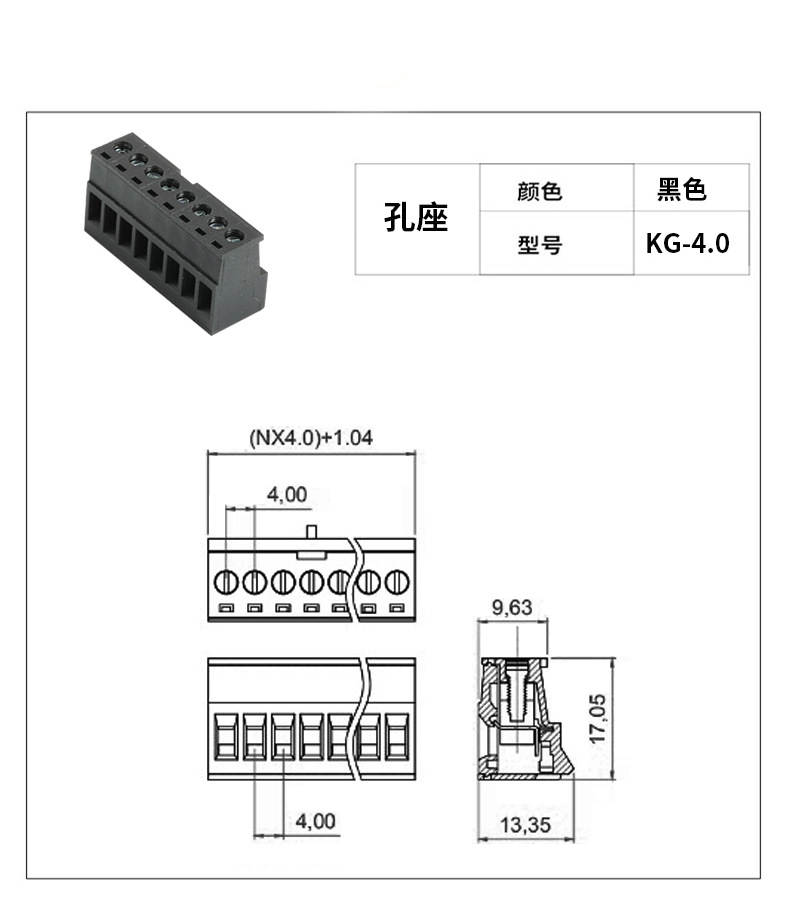

2EDGKG-4.0 Rated voltage/Current 300V/15A
Wire Capacity 2.5mm2
Pitch 4.0mm
Poles 2P~20P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length 5-6MM
Screw/Torque M2/0.2 N.M
Operation Temp. -40-105degree
Noted The color and packing accept customer made

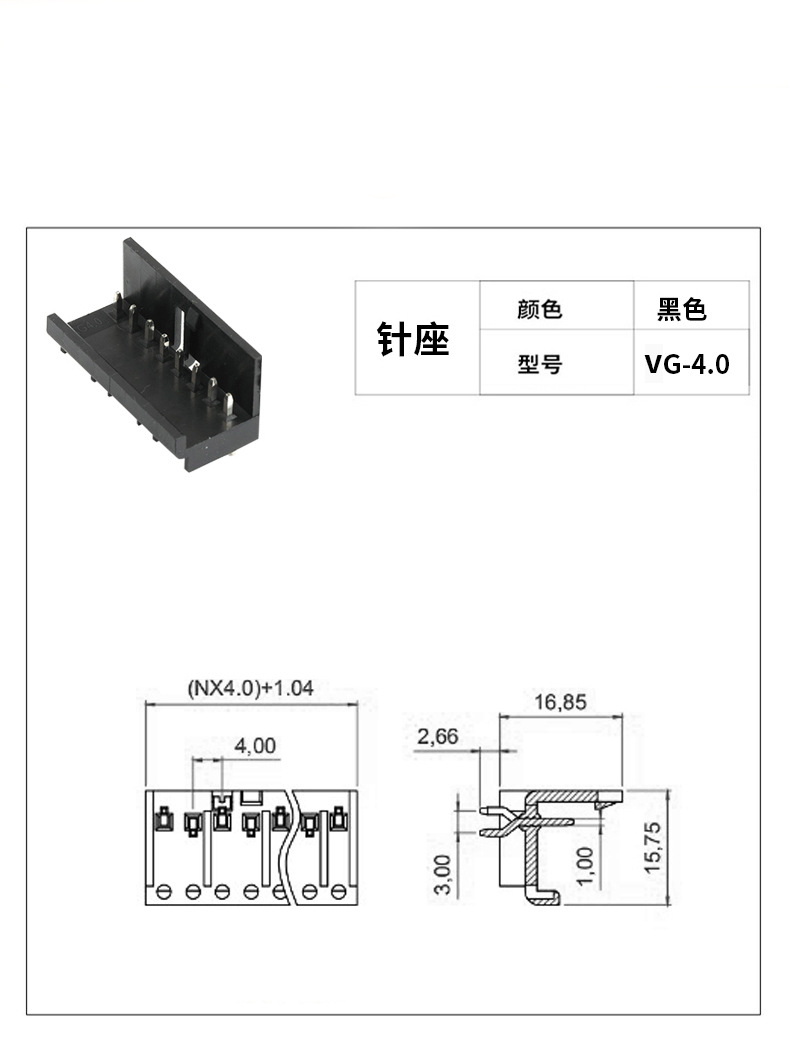

2EDGVG-4.0 Rated voltage/Current 300V/15A
Wire Capacity
Pitch 4.0mm
Poles 2P~20P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length
Screw/Torque
Operation Temp. -40-105degree
Noted The color and packing accept customer made

23-223-123-323-4

Previous:
Next:
PLC power terminal block 4.0mm power terminal block PLC terminal block 4.0mm S7-200 Terminal connector plug-in terminal block for S7-200 2EDGKG terminal block Siemens S7-200 terminal block Terminal block male and female terminal block Black terminal block

Related Products

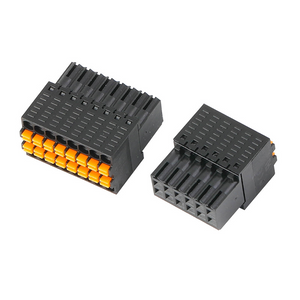

15EDGKNHB-2.54mm Double-layer Spring Plug-in Terminal Block Screwless Compact male Plugable Terminal Block
