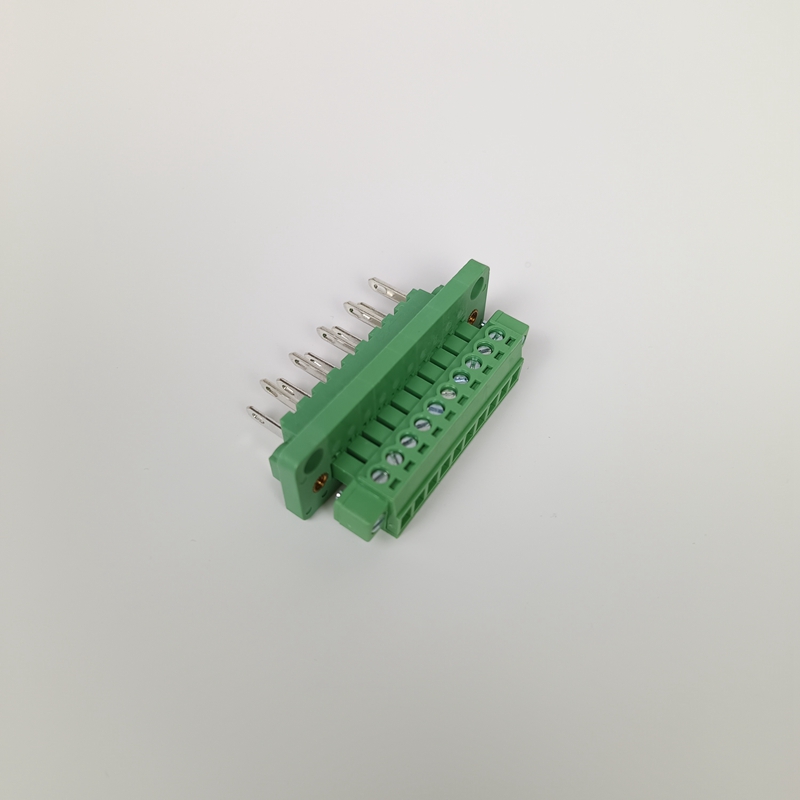

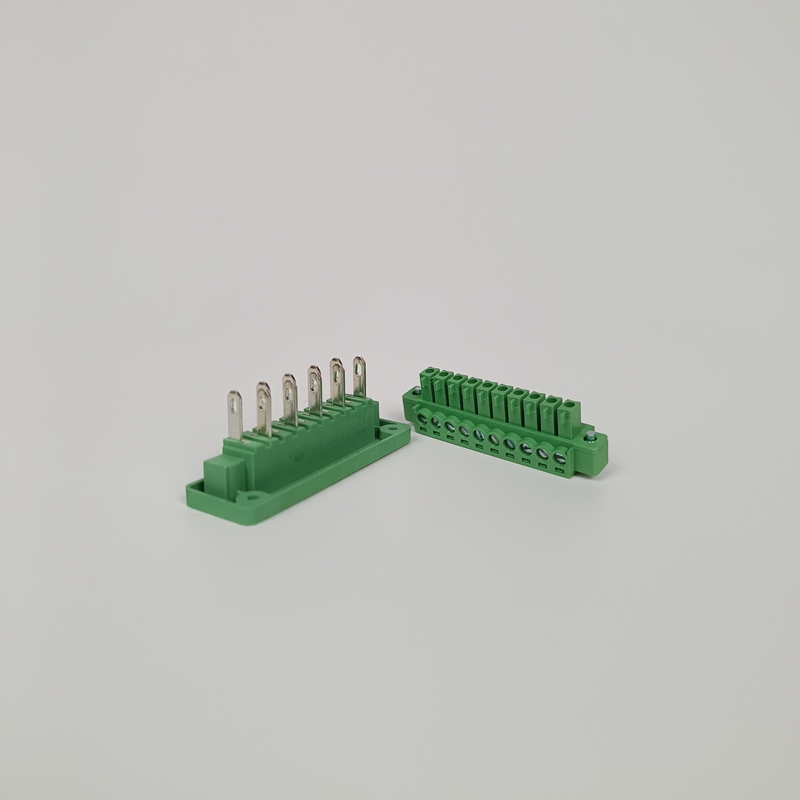

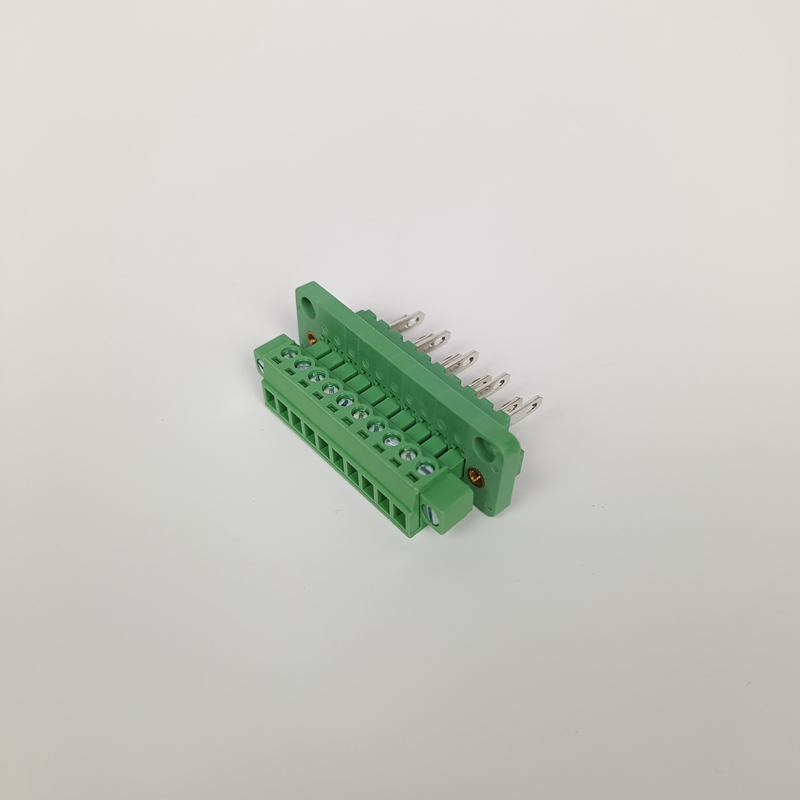

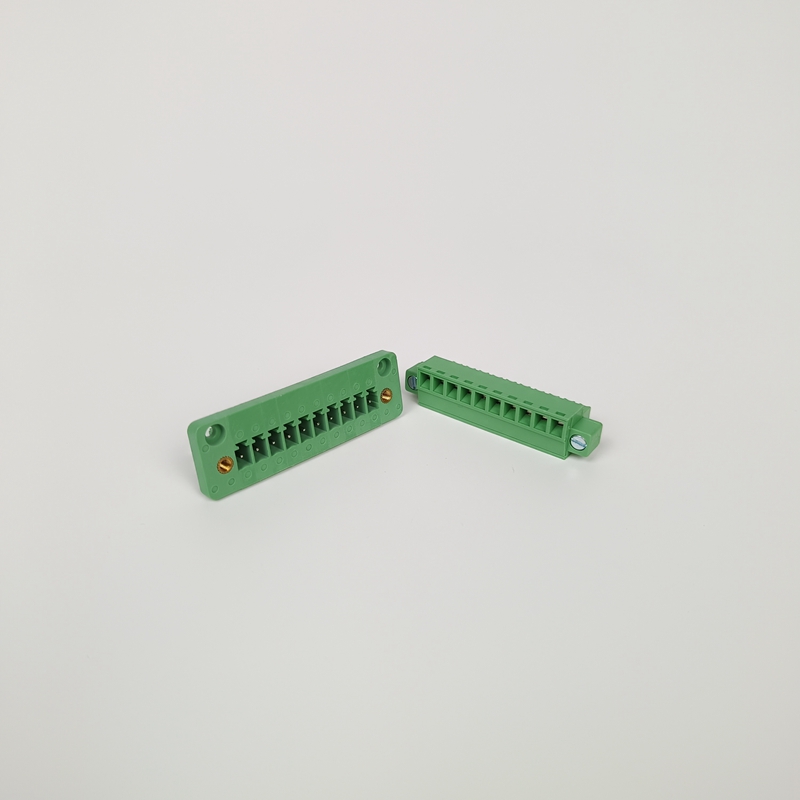

Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Home » Products » Terminal Blocks » Pluggable Terminal Block » Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange
Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange

loading

Replace Phoenix MC1.5 Through Wall Male And Female 3.81mm Pitch Pluggable Terminal Block with Flange

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Voltage/Current:(UL)300V/8A/(IEC)250V/10A
Pitch:3.81mm
Wire Range:28-16AWG/0.2-1.5mm2
Housing Material: PA66 UL94 V-0
Cage: Copper Alloy Tin Plated
Poles:02P-24P
Noted: Through wall type, panel mounted

  • 15EDGKM-3.81-XXP 15CDGM-3.81-XXP

  • FEILON

  • 15EDGKM-3.81-XXP 15CDGM-3.81-XXP

Availability:
Quantity:
Inquire Add to Basket

15EDGKM-3.81

15CDGM-3.81

 Rated voltage/Current 300V/8A
Wire Capacity 28-16AWG/0.2-1.5mm2
Pitch 3.81mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length 7-8mm
Screw/Torque M2/0.2N.M
Operation Temp. -40-105degree
Noted The color and packing accept customer made

B038-03


B038-07


B038-09
