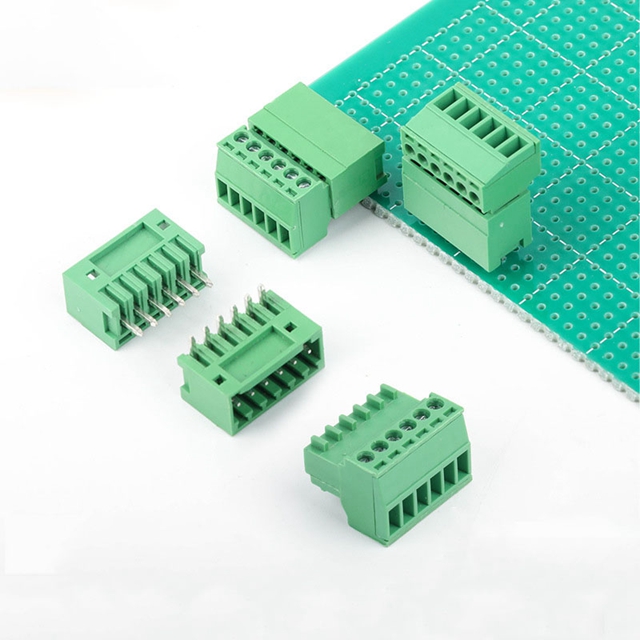

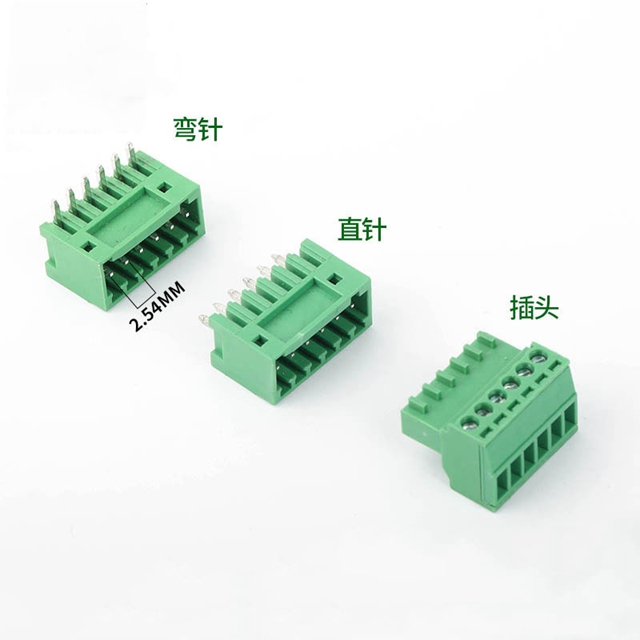

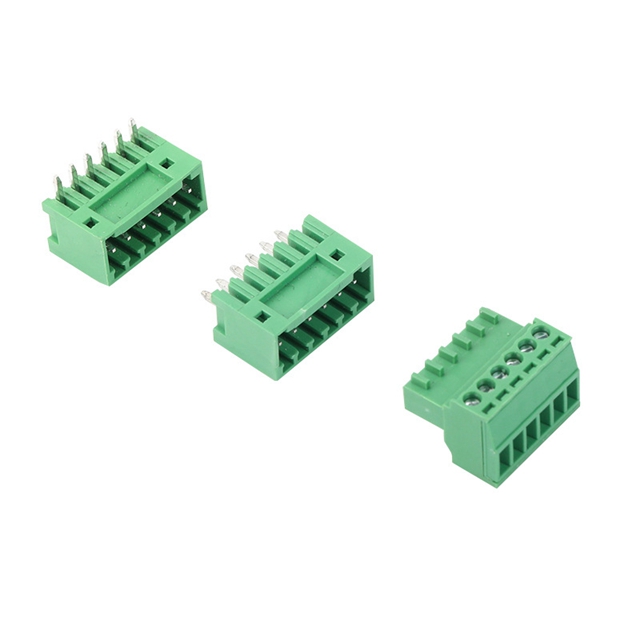

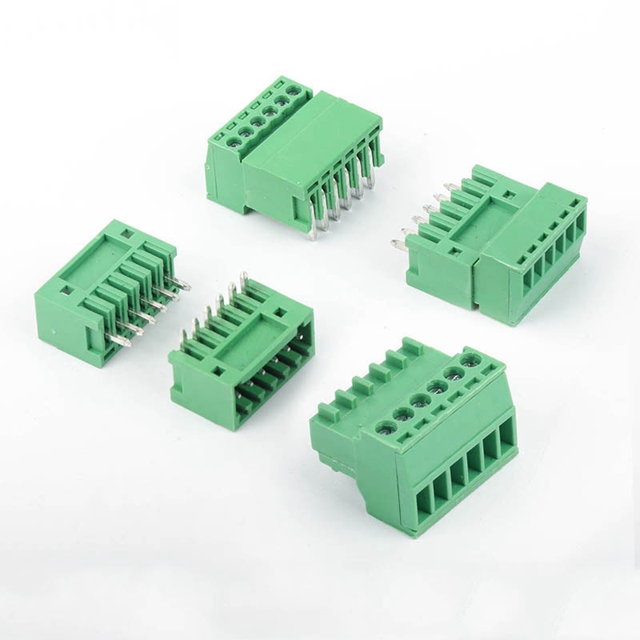

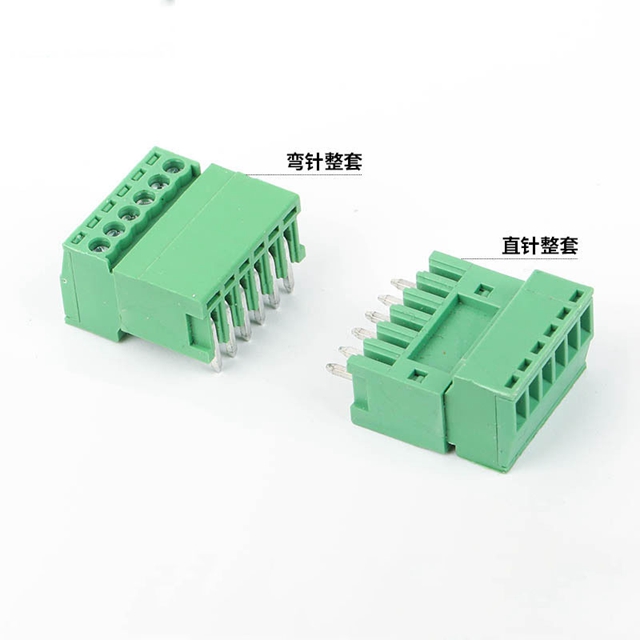

15EDGK-2.54MM Small Spacing Plug-in Terminal Block Screw Wiring PCB Soldering Board Straight Needle Bent Needle Complete Set

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Rated voltage/Current :150V/5A
Wire Capacity :26-20AWG
Pitch: 2.54mm
Poles 2P-24P
Housing Material: PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length: 5-6MM
Screw/Torque : M1.6/0.1 N.M
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made


  • 15EDGK-2.54-XXP 15EDGRC-2.54-XXP 15EDGVC-2.54-XXP

  • FEILON

  • 15EDGK-2.54-XXP 15EDGRC-2.54-XXP 15EDGVC-2.54-XXP

Availability:
Quantity:
Inquire Add to Basket

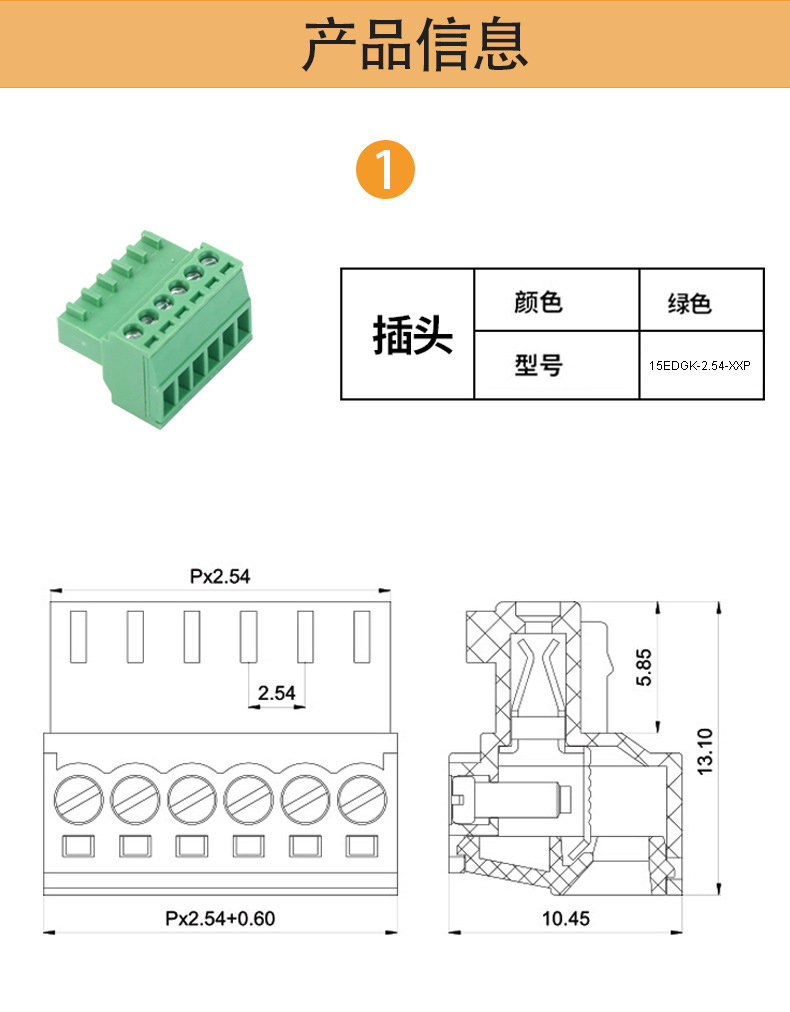

15EDGK-2.54 Rated voltage/Current 150V/5A
Wire Capacity 26-20AWG
Pitch 2.54mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length 5-6MM
Screw/Torque M1.6/0.1 N.M
Operation Temp. -40-105degree
Noted The color and packing accept customer made

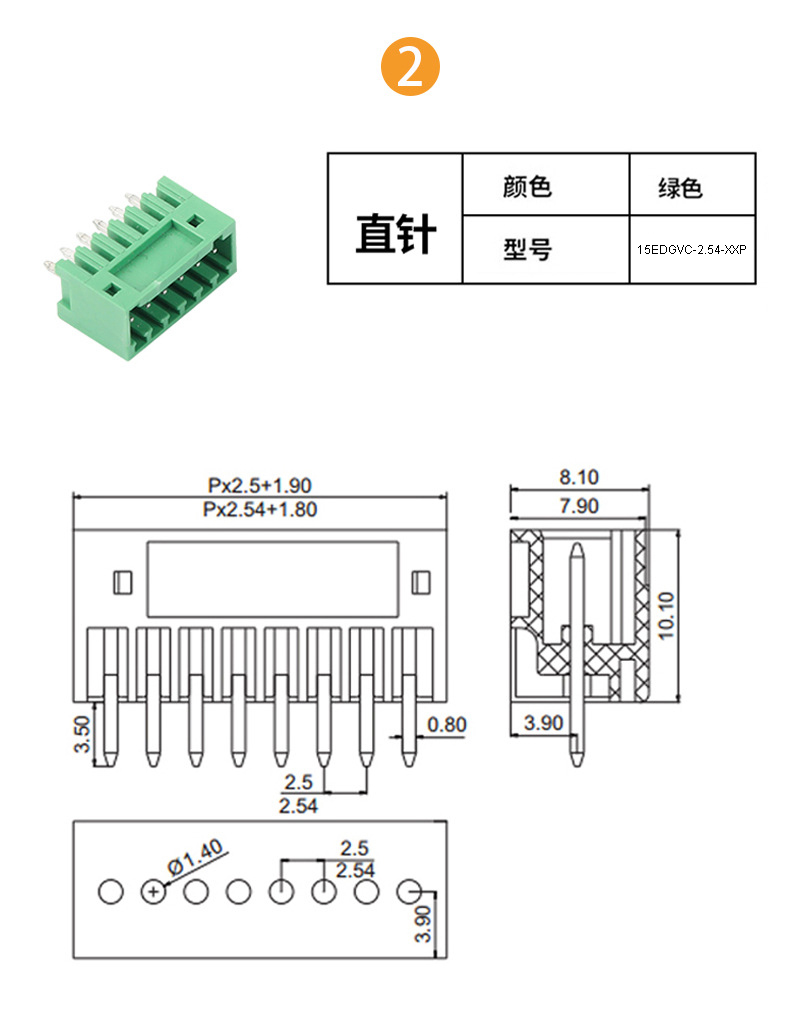

15EDGVC-2.5,2.54
 Rated voltage/Current 150V/5A
Wire Capacity
Pitch 2.5,2.54mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length
Screw/Torque
Operation Temp. -40-105degree
Noted The color and packing accept customer made

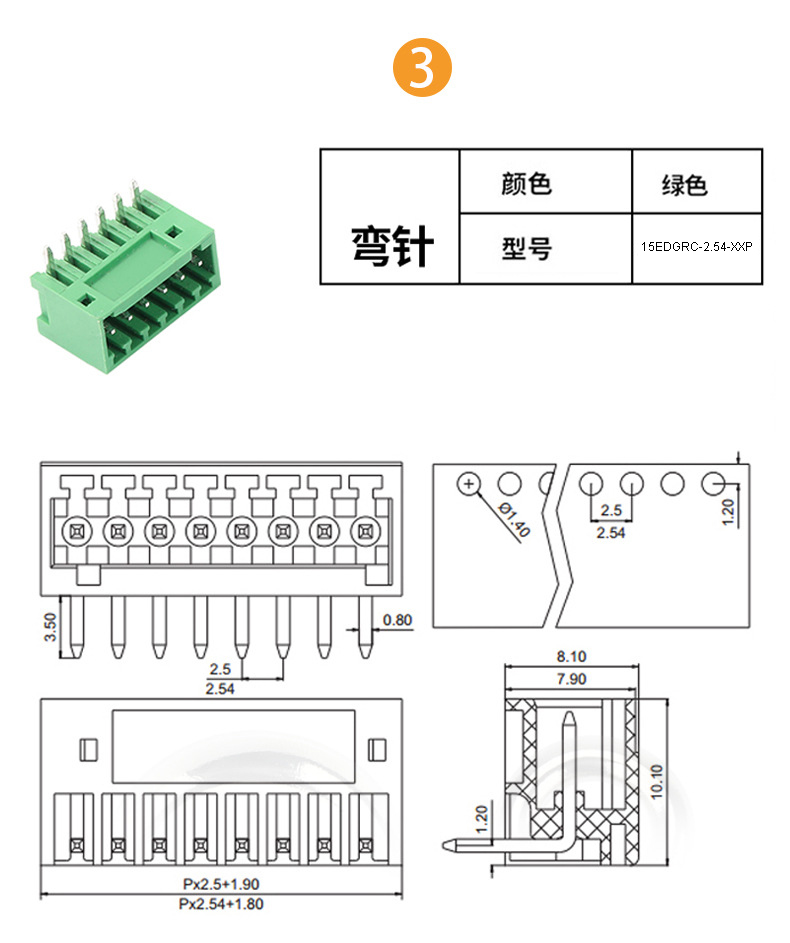

15EDGRC-2.5,2.54
 Rated voltage/Current 150V/5A
Wire Capacity
Pitch 2.5,2.54mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length
Screw/Torque
Operation Temp. -40-105degree
Noted The color and packing accept customer made
