Rated voltage/Current: 300V/8A
Wire Capacity: 28-16AWG
Pitch: 3.5/3.81mm
Poles: 2P-24P
Housing Material: PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :6-7MM
Screw/Torque :M2/0.2N.M
Operation Temp.: -40-105degree
Noted: The color and packing accept customer made



  • 15EDGKA-3.81-XXP 15EDGRC-3.81-XXP 15EDGVC-3.81-XXP

  • FEILON

  • 15EDGKA-3.81-XXP 15EDGRC-3.81-XXP 15EDGVC-3.81-XXP

Availability:
Quantity:
Inquire Add to Basket

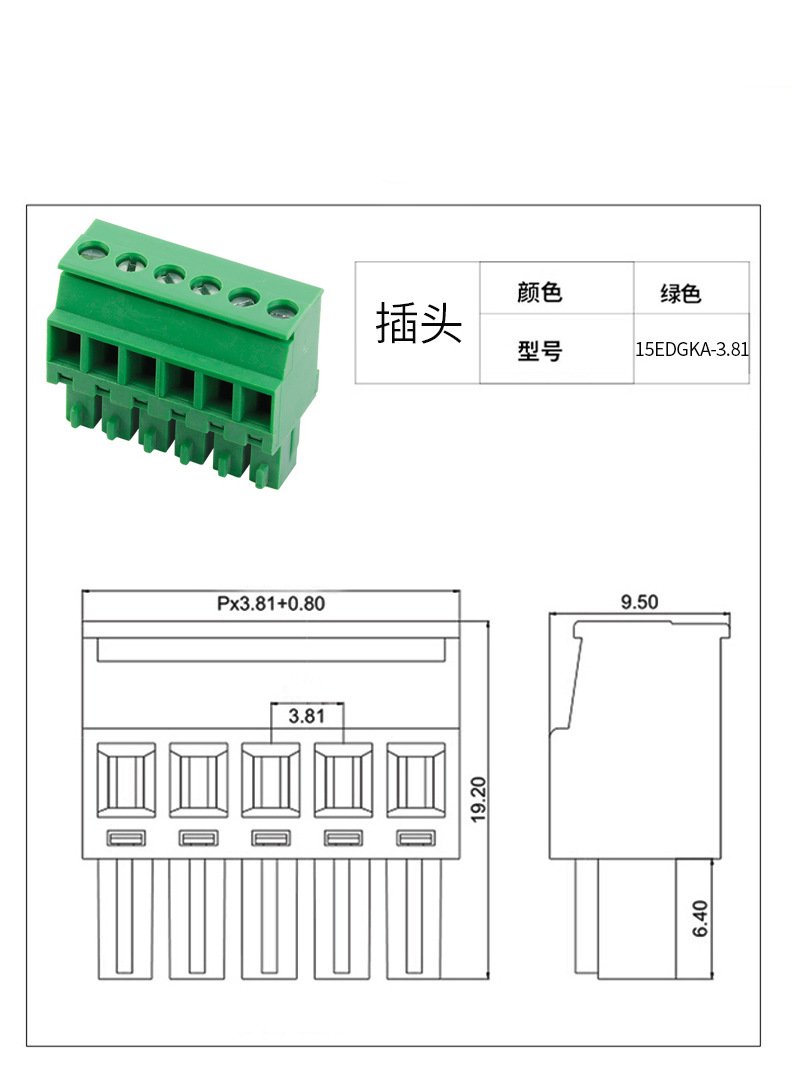

15EDGKA-3.5,3.81 Rated voltage/Current 300V/8A
Wire Capacity 28-16AWG
Pitch 3.5,3.81mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length 6-7MM
Screw/Torque M2/0.2N.M
Operation Temp. -40-105degree
Noted The color and packing accept customer made

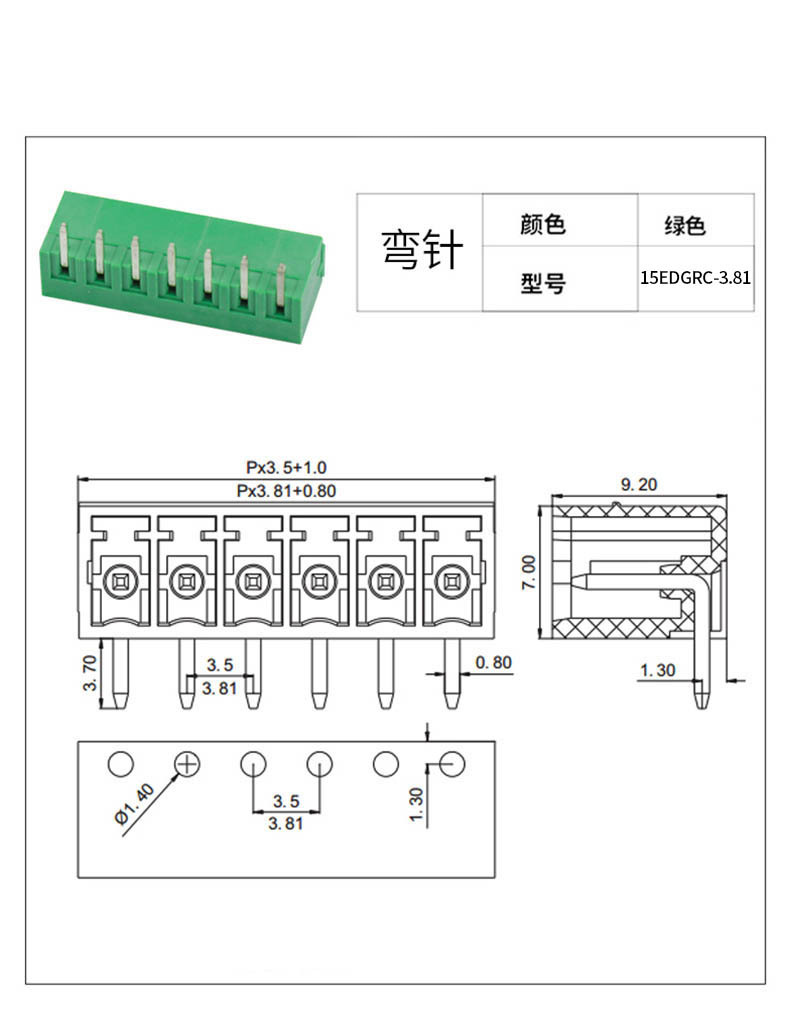

15EDGRC-3.5,3.81 Rated voltage/Current 300V/8A
Wire Capacity
Pitch 3.5,3.81mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length
Screw/Torque
Operation Temp. -40-105degree
Noted The color and packing accept customer made

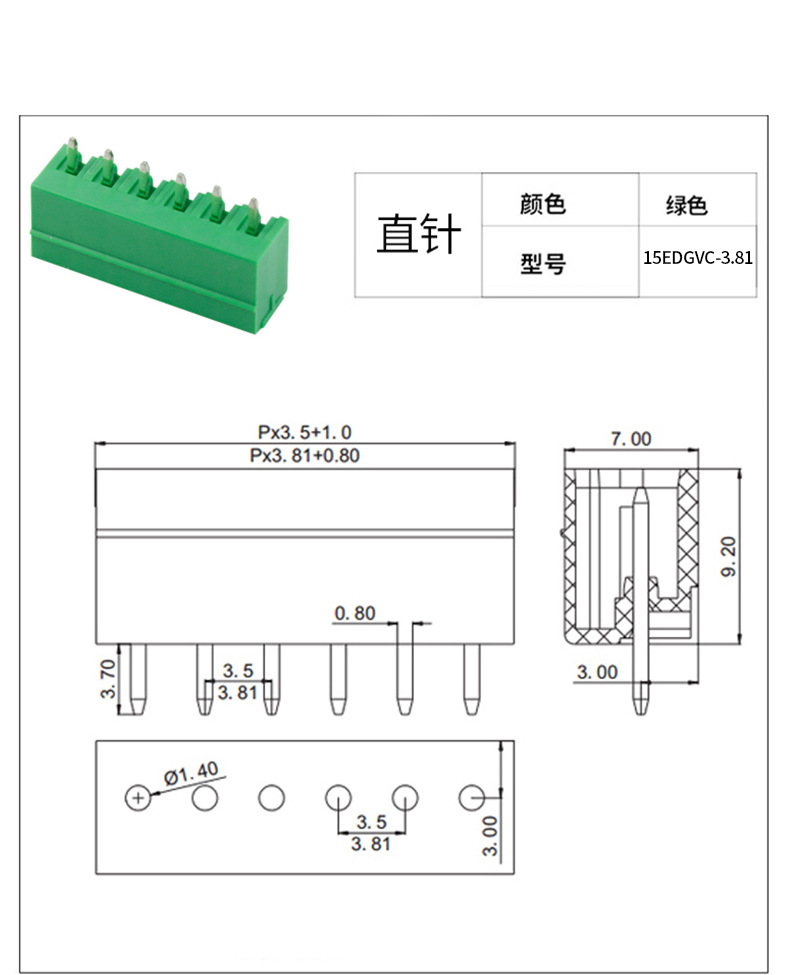

15EDGVC-3.5,3.81 Rated voltage/Current 300V/8A
Wire Capacity
Pitch 3.5,3.81mm
Poles 2P-24P
Housing Material PA66/UL94V-0
Contact Material Copper alloy
Stripping Length
Screw/Torque
Operation Temp. -40-105degree
Noted The color and packing accept customer made

4-14-24-34-6
