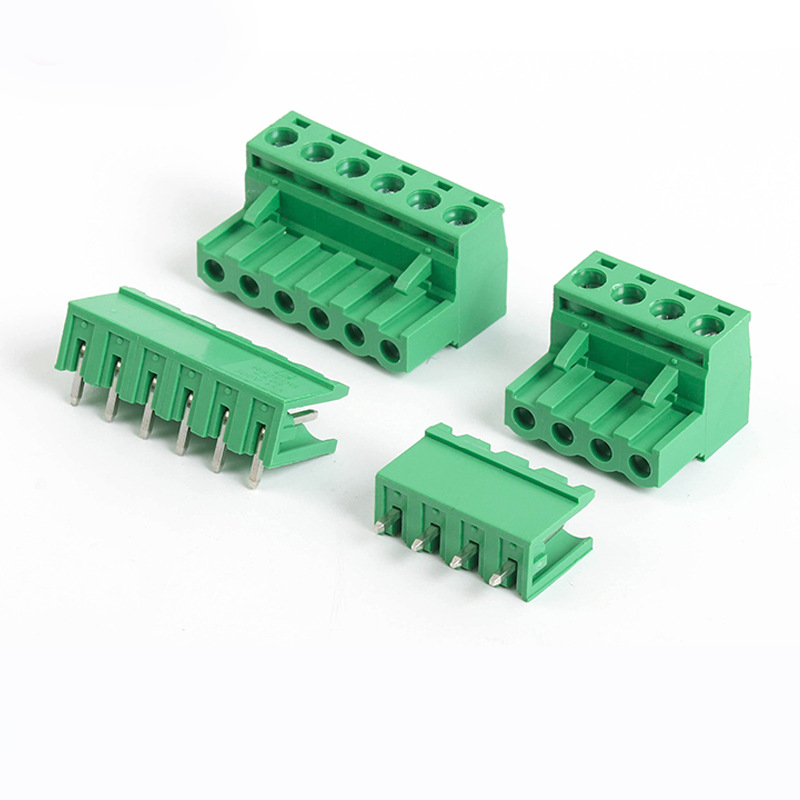

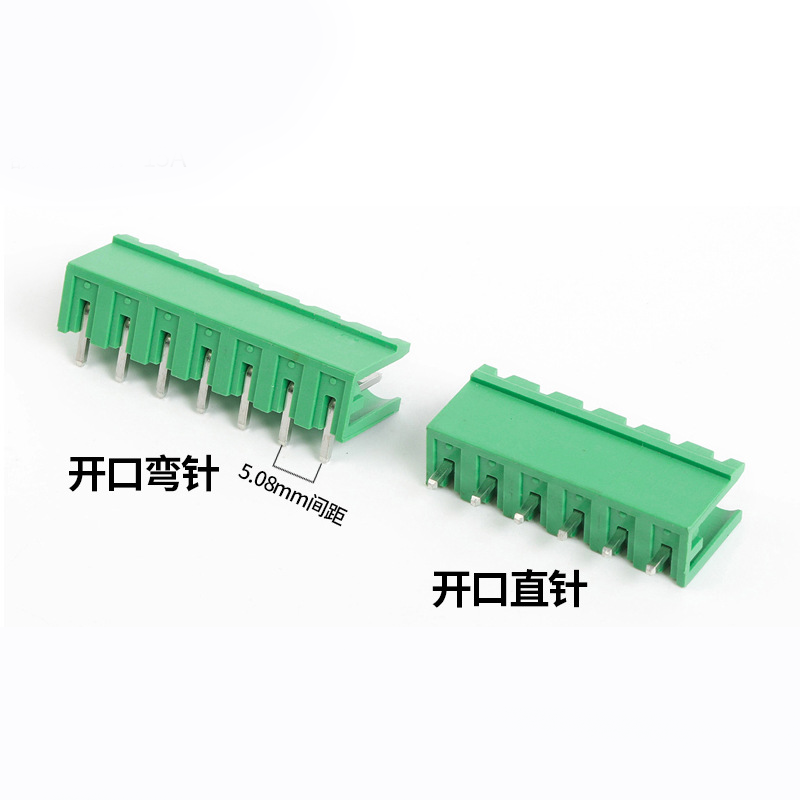

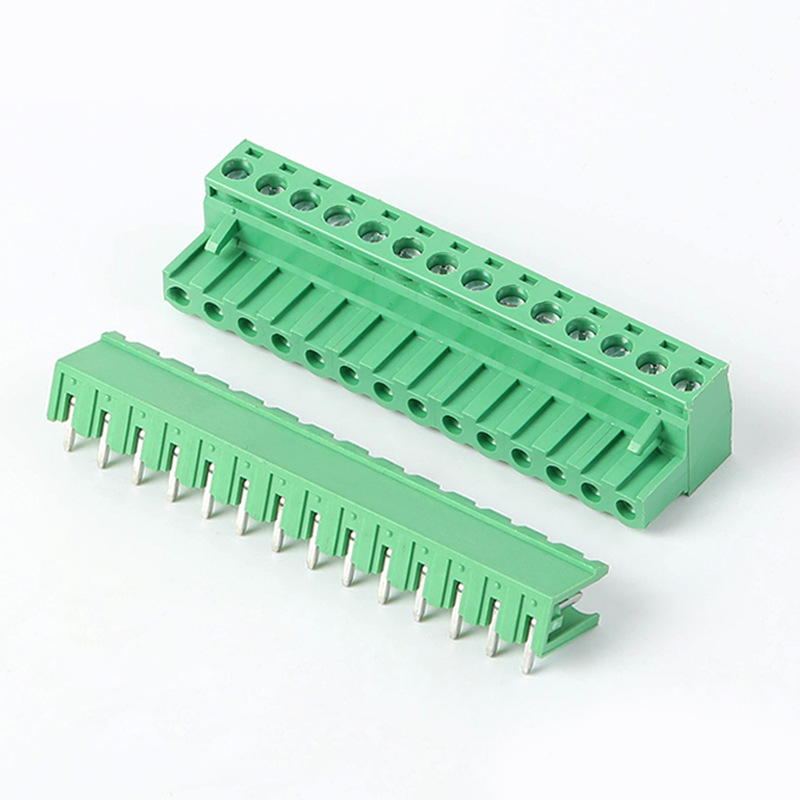

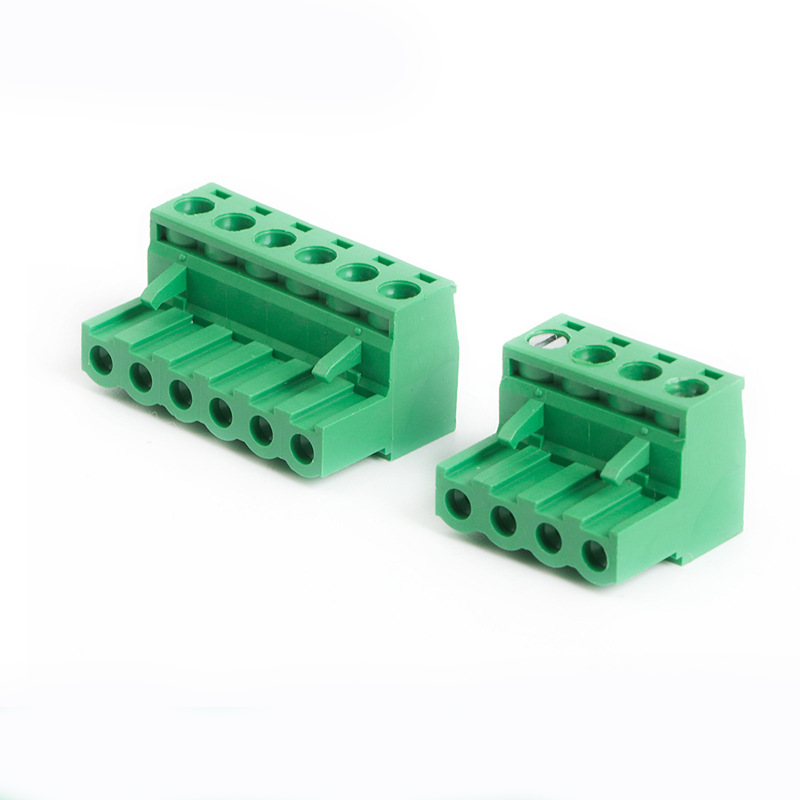

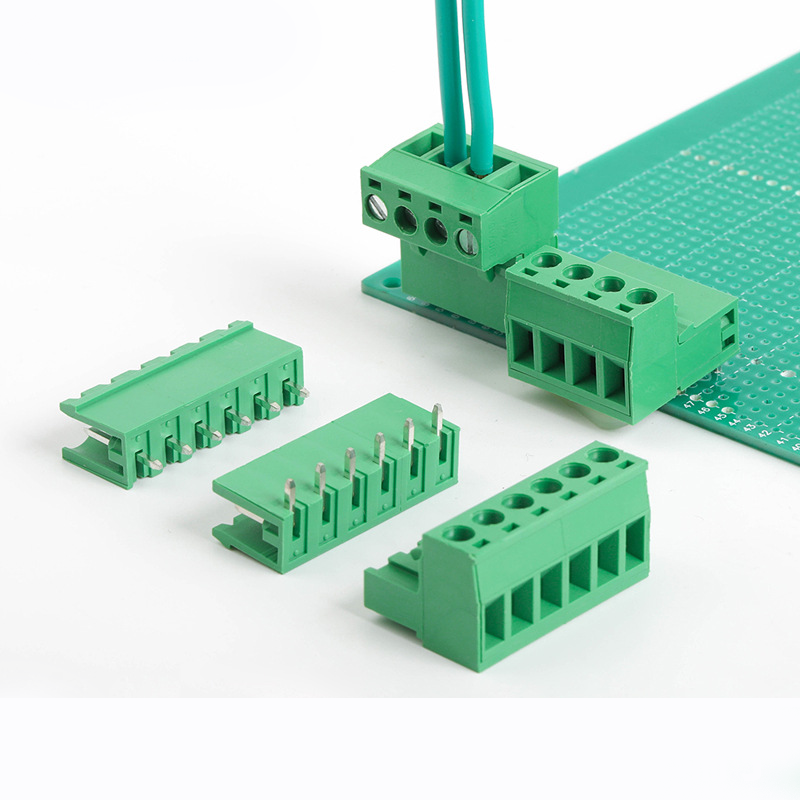

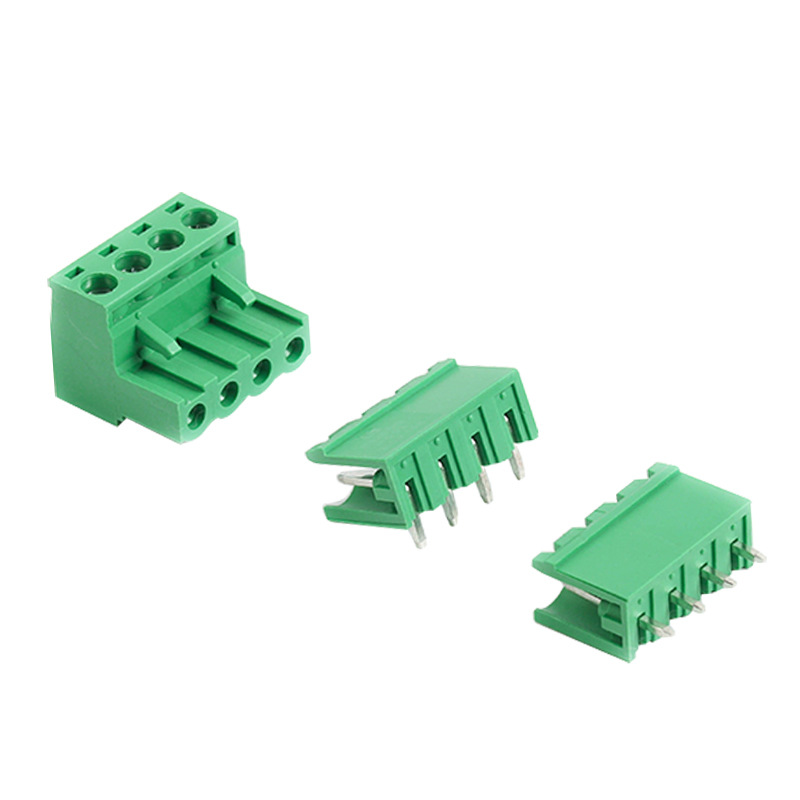

replace phoenix MSTB 2.5 2EDGK-5.08mm plug-in terminal block PCB connector plug pin socket 2P to 24P can be offered

Rated voltage/Current: 300V/15A
Wire Capacity: 28-12AWG
Pitch :5.0,5.08mm
Poles :2P-24P
Housing Material :PA66/UL94V-0
Contact Material :Copper alloy
Stripping Length :7-8mm
Screw/Torque : M3/0.5N.M
Operation Temp.: -40-105degree
Noted :The color and packing accept customer made

Model:
2EDGK-5.08-XXP 2EDGRC-5.08-XXP 2EDGVC-5.08-XXP
Brand:
FEILON
Code:
2EDGK-5.08-XXP 2EDGRC-5.08-XXP 2EDGVC-5.08-XXP

Availability:

Quantity:



Inquire Add to Basket

Product Description

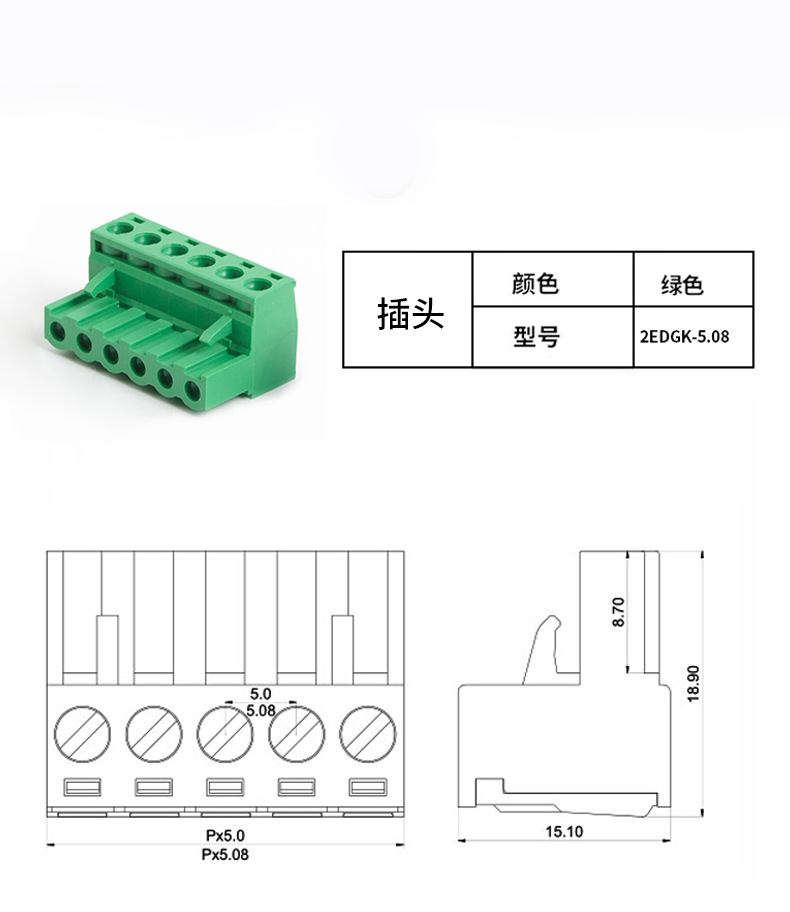

2EDGK-5.0,5.08	Rated voltage/Current	300V/15A
	Wire Capacity	28-12AWG
	Pitch	5.0,5.08mm
	Poles	2P-24P
	Housing Material	PA66/UL94V-0
	Contact Material	Copper alloy
	Stripping Length	7-8mm
	Screw/Torque	M3/0.5N.M
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made

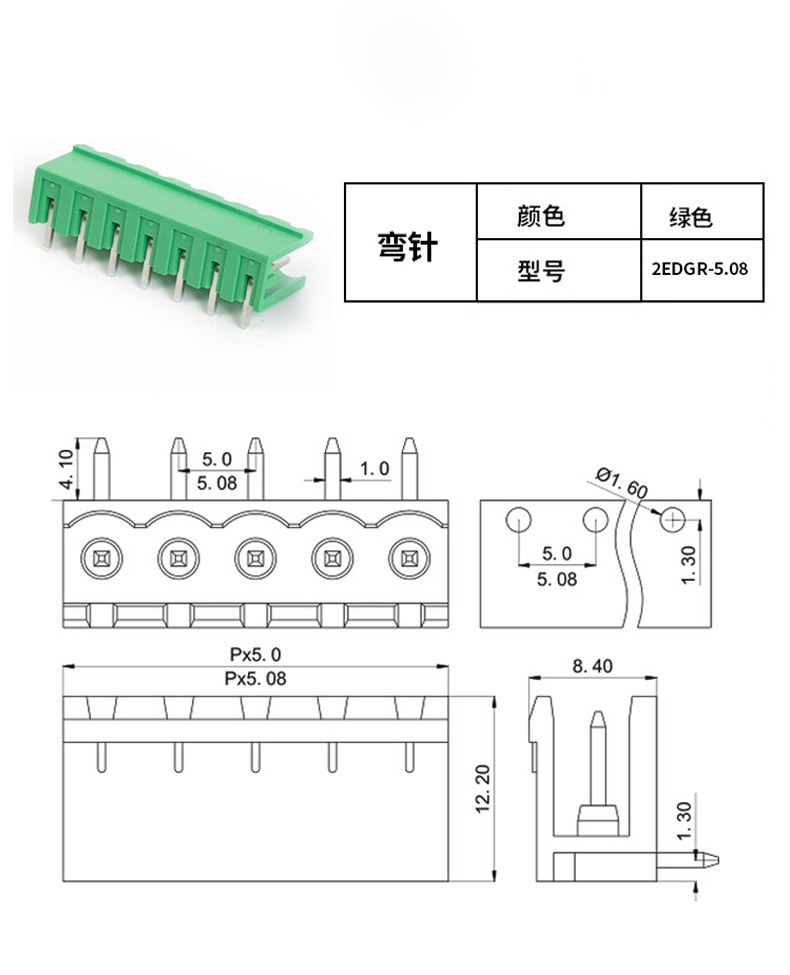

2EDGRC-5.0,5.08	Rated voltage/Current	300V/15A
	Wire Capacity
	Pitch	5.0,5.08mm
	Poles	2P-24P
	Housing Material	PA66/UL94V-0
	Contact Material	Copper alloy
	Stripping Length
	Screw/Torque
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made

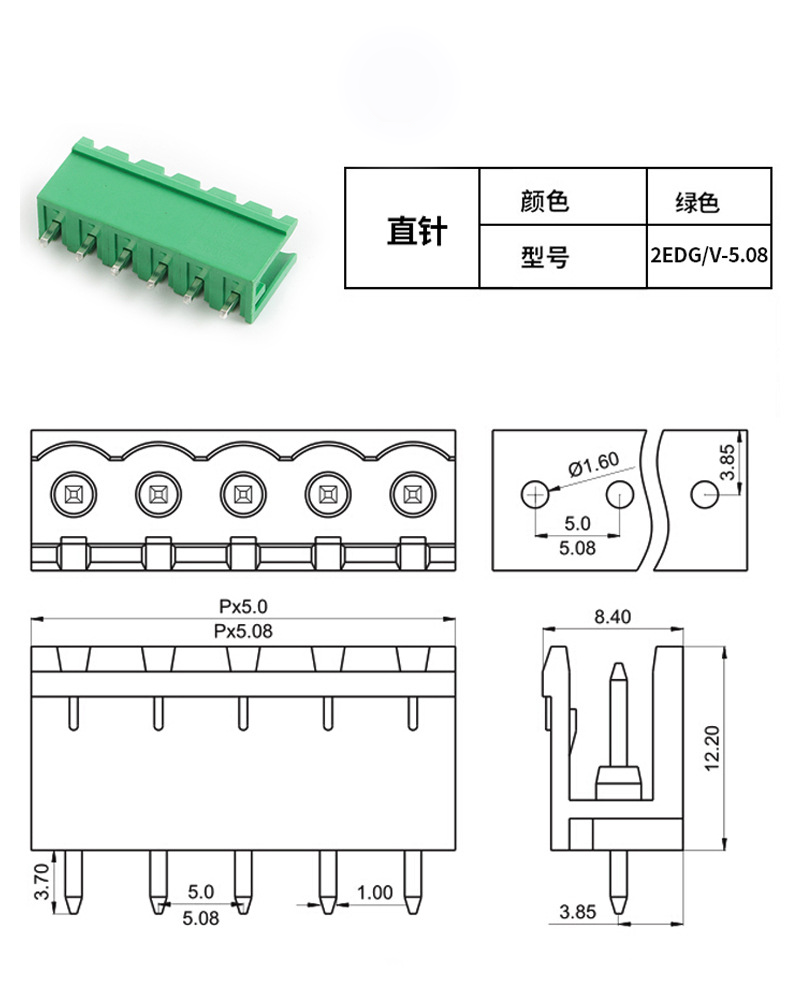

2EDGVC-5.0,5.08	Rated voltage/Current	300V/15A
	Wire Capacity
	Pitch	5.0,5.08mm
	Poles	2P-24P
	Housing Material	PA66/UL94V-0
	Contact Material	Copper alloy
	Stripping Length
	Screw/Torque
	Operation Temp.	-40-105degree
	Noted	The color and packing accept customer made
